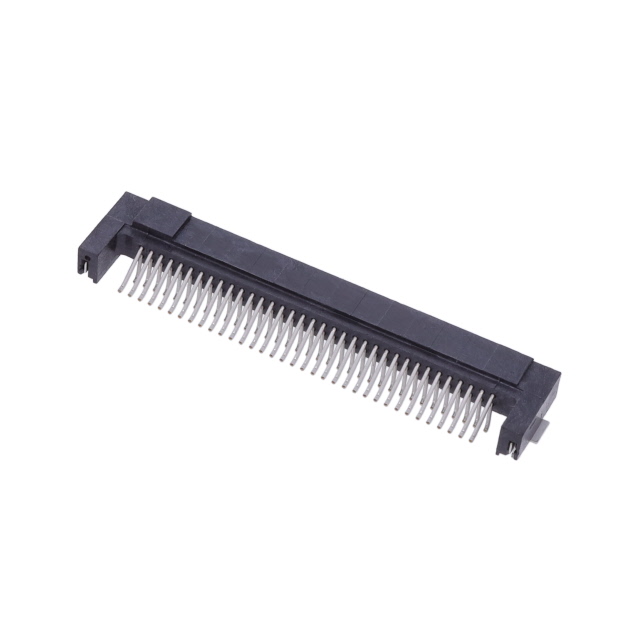

5-104894-7
CONN HEADER SMD R/A 70POS 1.27MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount, Right Angle 70 position 0.050"" (1.27mm)
Additional Information
Series: AMPMODU 50/50 GridRoHS Status: Request inventory verificationManufacturer Lead Time: 37 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Solder Retention |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 0.5A per Contact |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 70 |
| Number of Rows | 2 |
| Style | Board to Board |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.050"" (1.27mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Circular |
| Contact Length - Post | - |
| Insulation Height | 0.213"" (5.40mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Row Spacing - Mating | 0.050"" (1.27mm) |
| Contact Length - Mating | - |
