5-102617-7

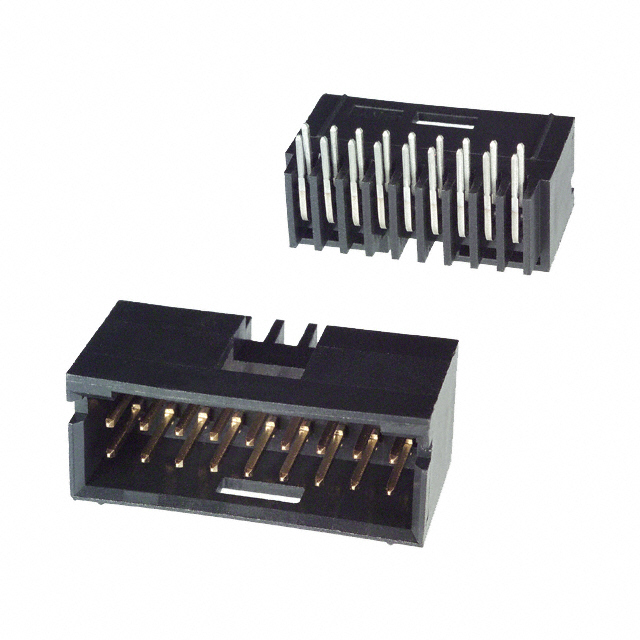

CONN HEADER R/A 18POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors AMPMODU Mod II series 5-102617-7 is a right-angle header with 18 positions and a 2.54mm pitch. This through-hole mounted connector features gold mating contacts with a 15.0µin finish and tin plated post contacts. Constructed from UL94 V-0 rated thermoplastic, the black insulated housing supports a 3A current rating. The connector utilizes phosphor bronze male pins with a square contact shape and a detent lock fastening type. It is designed for board-to-board or cable applications, operating within a temperature range of -65°C to 105°C. This shrouded header, with two rows and a 0.100" row spacing, is supplied in trays. Its robust design makes it suitable for industrial automation and automotive applications.
Additional Information
Series: AMPMODU Mod IIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.135"" (3.43mm) |
| Insulation Height | 0.400"" (10.16mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.318"" (8.08mm) |
