4-641213-4
CONN HEADER VERT 14POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

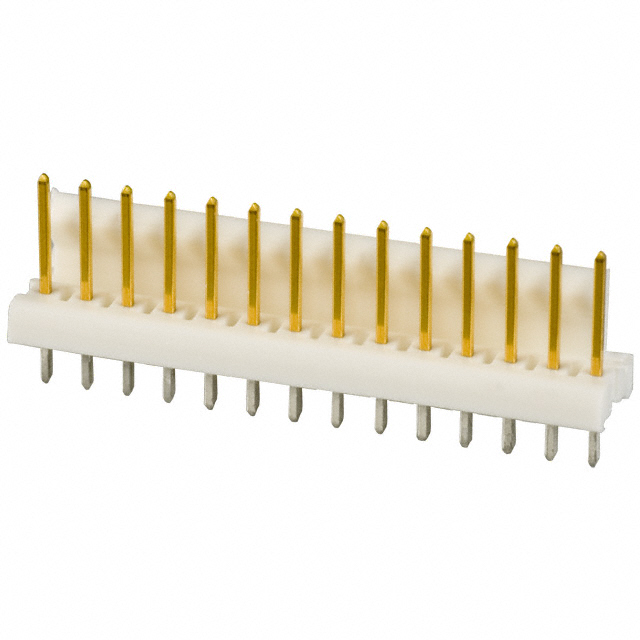

TE Connectivity AMP Connectors MTA-100 series header, part number 4-641213-4, offers a 14-position, single-row, shrouded vertical connector with a 2.54mm pitch. This through-hole mounted component features gold-plated mating contacts with a 30µin thickness for enhanced conductivity and tin-plated post contacts for reliable termination. Constructed from UL94 V-0 rated natural thermoplastic insulation, it operates across a temperature range of -55°C to 105°C and has a voltage rating of 250VAC. The copper alloy male pin contacts are designed for board-to-cable/wire applications, finding utility in industrial automation, consumer electronics, and telecommunications equipment.
Additional Information
Series: MTA-100RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | - |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.140"" (3.56mm) |
| Insulation Height | 0.305"" (7.75mm) |
| Shrouding | Shrouded - 1 Wall |
| Overall Contact Length | 0.535"" (13.59mm) |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.295"" (7.49mm) |
