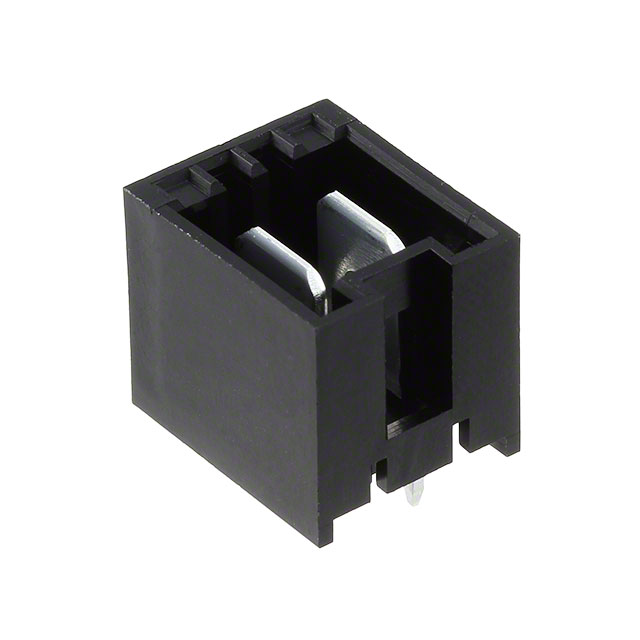

4-521755-2
CONN HEADER VERT 2POS 5MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors offers the 4-521755-2, a 2-position header with a 5mm pitch. This shrouded header features a vertical through-hole mounting style and a board-to-cable/wire application design. The component utilizes brass contacts with a silver mating and post finish, measuring 78.7µin (2.00µm) for mating. The post contact length is 0.138" (3.50mm). Constructed with UL94 V-0 rated Polyamide (PA66), Nylon 6/6 insulation, it provides an insulation height of 0.504" (12.80mm). Operating within a temperature range of -40°C to 120°C, this header supports a 250VAC voltage rating and a solder termination method. It is supplied in bulk packaging. This connector is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 120°C |
| Contact Type | Tab |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | - |
| Pitch - Mating | 0.197"" (5.00mm) |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Silver |
| Contact Shape | Rectangular |
| Contact Length - Post | 0.138"" (3.50mm) |
| Insulation Height | 0.504"" (12.80mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
