4-1971817-4
CONN HEADER VERT 4POS 2.5MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

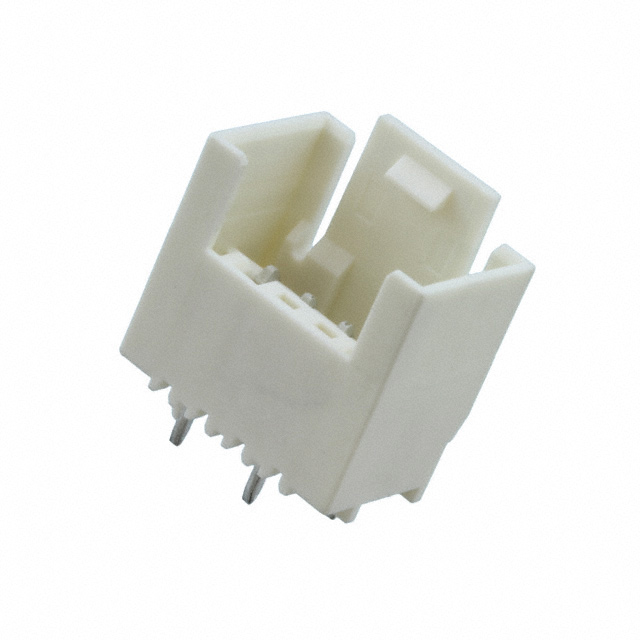

TE Connectivity AMP Connectors 4-1971817-4 is a shrouded vertical header with a 2.50mm pitch, designed for through-hole mounting. This 4-position component features a locking ramp for secure mating and a board guide for enhanced assembly. The copper alloy contacts are finished with tin for reliable conductivity and have a post length of 0.114 inches (2.90mm). Constructed from UL94 V-0 rated polyamide (PA) insulation, it offers a natural color and an insulation height of 0.610 inches (15.49mm). Operating within a temperature range of -40°C to 120°C, this header is suitable for applications in the automotive and industrial sectors requiring robust and reliable interconnect solutions.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Glow Wire Compliant |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 120°C |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Pitch - Mating | 0.098"" (2.50mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Rectangular |
| Contact Length - Post | 0.114"" (2.90mm) |
| Insulation Height | 0.610"" (15.49mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
