4-103777-0
CONN HEADER VERT 80POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

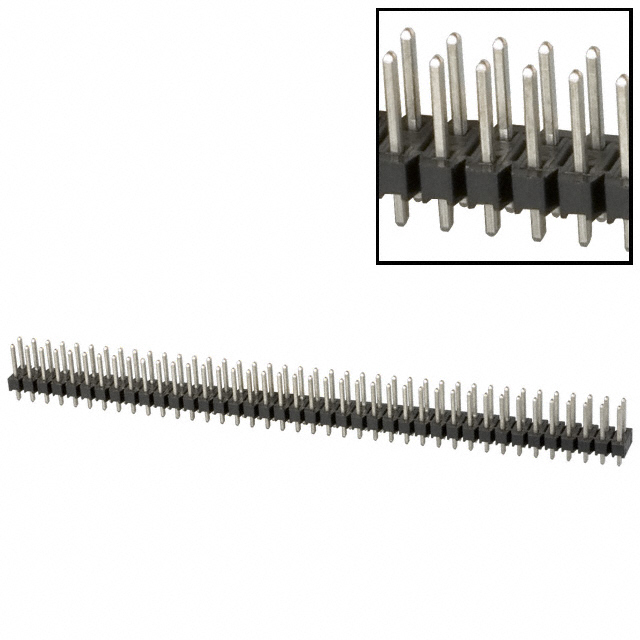

TE Connectivity AMP Connectors AMPMODU Mod II series 4-103777-0 is an 80-position, unshrouded male header designed for through-hole mounting. This component features a 2.54mm pitch and a dual-row configuration, offering a robust solution for board-to-board or cable interconnect applications. The header utilizes phosphor bronze contacts with a tin-lead finish, providing 3A current rating. The black thermoplastic insulator, rated UL94 V-0, ensures reliable performance across an operating temperature range of -65°C to 105°C. This header is commonly found in industrial automation, consumer electronics, and data communication systems.
Additional Information
Series: AMPMODU Mod IIRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header, Breakaway |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.090"" (2.29mm) |
| Insulation Height | 0.090"" (2.29mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.410"" (10.41mm) |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.230"" (5.84mm) |
