4-103186-0

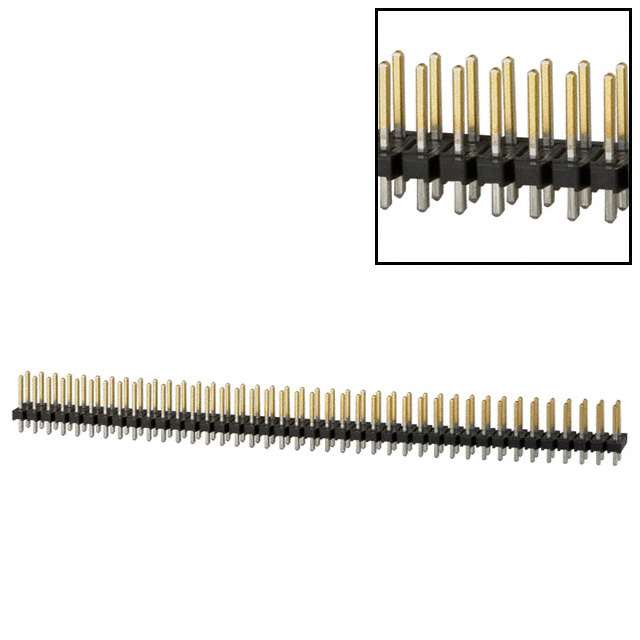

CONN HEADER VERT 80POS 2.54MM

Manufacturer: TE Connectivity AMP Connectors

Categories: Headers, Male Pins

Quality Control: Learn More

TE Connectivity AMP Connectors AMPMODU Mod II 4-103186-0 is an 80-position, 2-row vertical header with a 0.100" (2.54mm) pitch. Featuring a robust copper alloy contact material and a square male pin shape, this unshrouded connector is designed for reliable board-to-board or cable applications. The mating contacts are finished with 15.0µin (0.38µm) gold for enhanced conductivity, while the post contacts utilize tin-lead plating. This header offers a current rating of 3A and is constructed with UL94 V-0 rated black thermoplastic insulation. Mounting is achieved via through-hole termination with a solder connection. Operating temperature ranges from -65°C to 105°C. This component is utilized in industrial automation, telecommunications, and consumer electronics sectors.

Additional Information

Series: AMPMODU Mod IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
Features-
PackagingBulk
Connector TypeHeader, Breakaway
Voltage Rating-
Current Rating (Amps)3A
Mounting TypeThrough Hole
Number of Positions80
Number of Rows2
StyleBoard to Board or Cable
Operating Temperature-65°C ~ 105°C
Contact TypeMale Pin
Fastening TypePush-Pull
Number of Positions LoadedAll
TerminationSolder
Ingress Protection-
Material Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Insulation ColorBlack
Pitch - Mating0.100"" (2.54mm)
Contact Finish - MatingGold
Contact Finish Thickness - Mating15.0µin (0.38µm)
Contact Finish - PostTin-Lead
Contact ShapeSquare
Contact Length - Post0.120"" (3.05mm)
Insulation Height0.090"" (2.29mm)
ShroudingUnshrouded
Overall Contact Length0.440"" (11.18mm)
Insulation MaterialThermoplastic
Row Spacing - Mating0.100"" (2.54mm)
Contact Length - Mating0.230"" (5.84mm)
