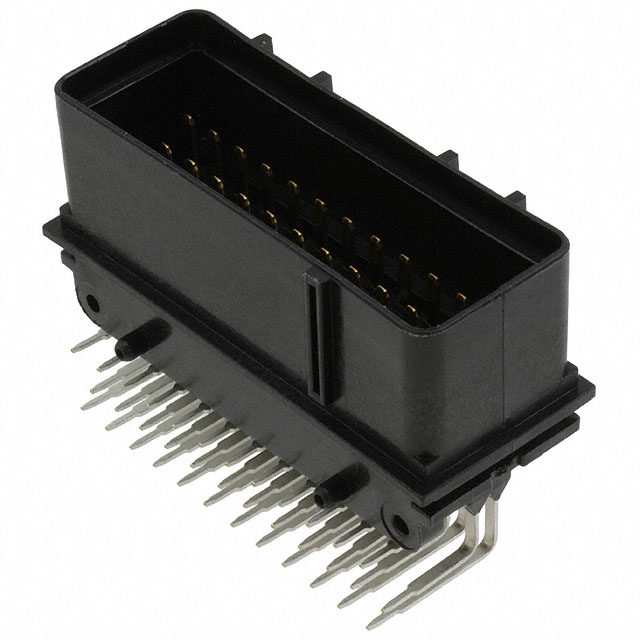

344108-1
CONN HEADER R/A 36POS 5MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 36 position 0.197"" (5.00mm)
Additional Information
Series: EconoSeal III 070RoHS Status: ROHS3 CompliantManufacturer Lead Time: 44 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 36 |
| Number of Rows | 3 |
| Style | Board to Cable/Wire |
| Operating Temperature | - |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.197"" (5.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Rectangular |
| Contact Length - Post | - |
| Insulation Height | 1.165"" (29.60mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Row Spacing - Mating | 0.236"" (6.00mm) |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy

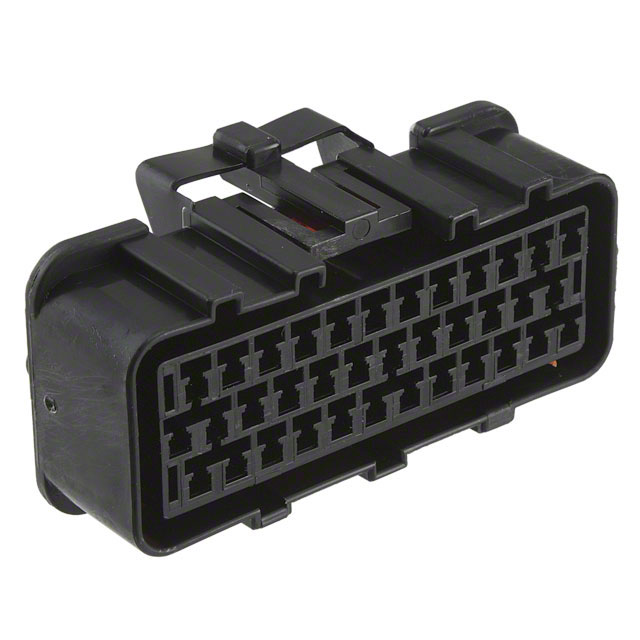

344111-1
CONN RECEPT HOUSING 36POS BLACK

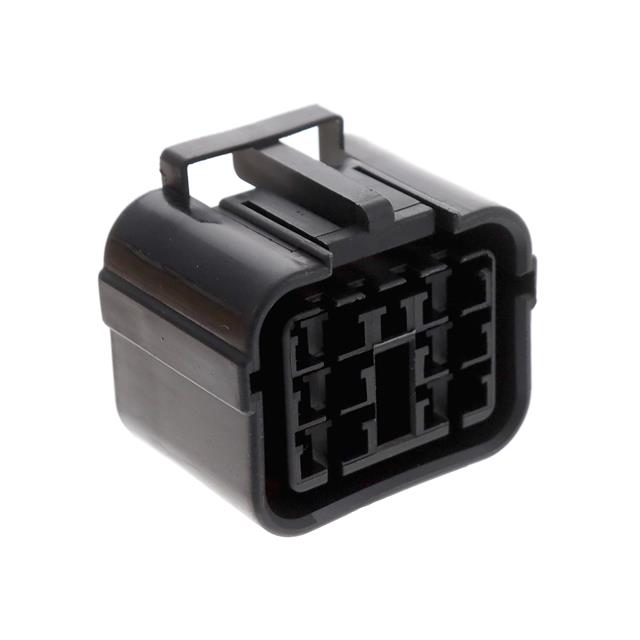

344263-1
CONN RCPT HSG 13POS 4.80MM

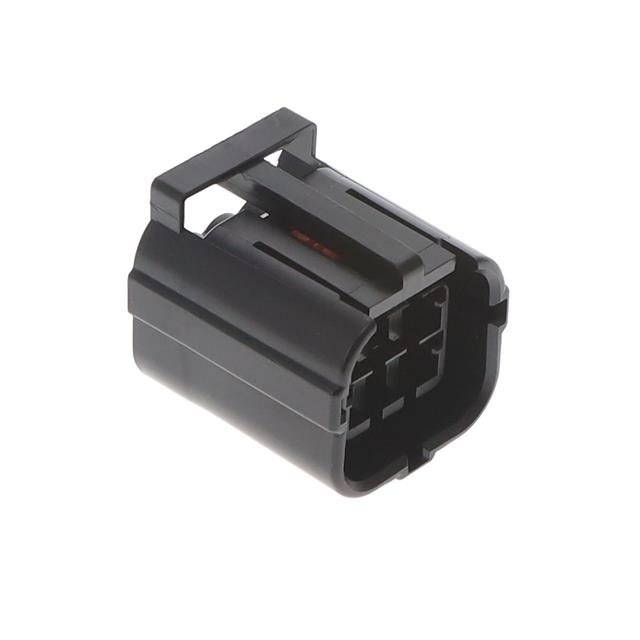

344267-1
