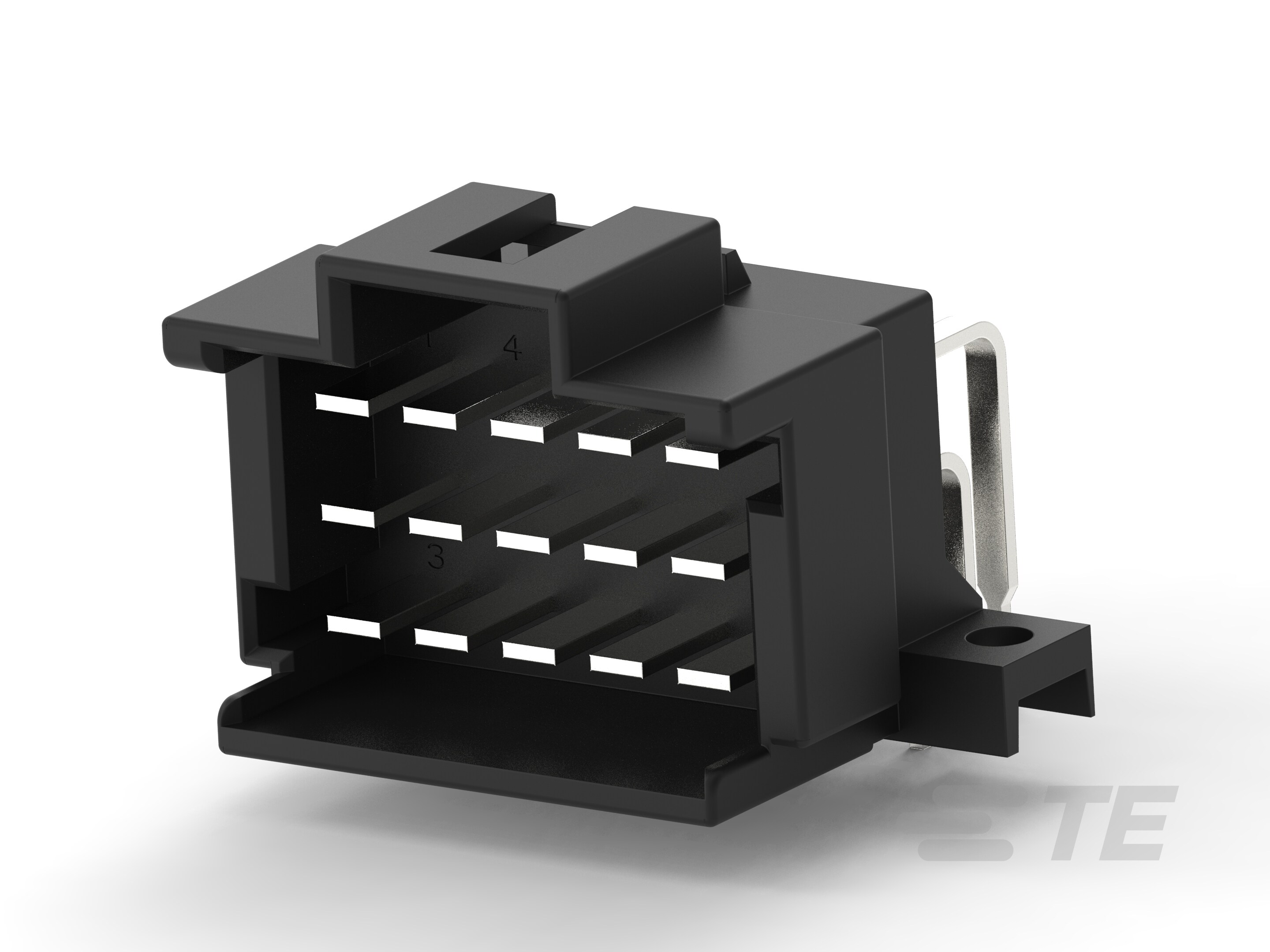

3-966140-2
CONN HEADER R/A 15POS 5MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 15 position 0.197"" (5.00mm)
Additional Information
Series: MCPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Style | Board to Board or Cable |
| Operating Temperature | -40°C ~ 100°C |
| Contact Type | Tab |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.197"" (5.00mm) |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Shape | Rectangular |
| Contact Length - Post | 0.118"" (3.00mm) |
| Insulation Height | 1.012"" (25.70mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Row Spacing - Mating | 0.217"" (5.51mm) |
| Contact Length - Mating | - |
