3-647047-5

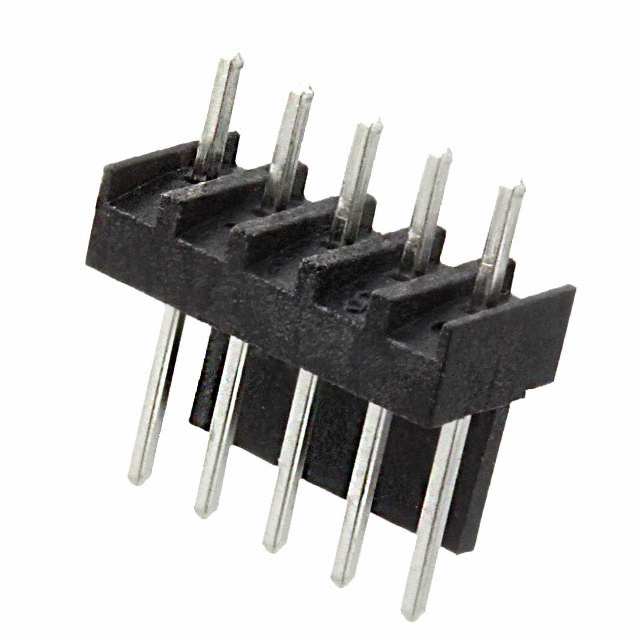

CONN HEADER VERT 5POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors MTA-100 series 3-647047-5 is a shrouded, vertical header with 5 positions and a 2.54mm pitch. This through-hole component features tin-plated copper alloy male pin contacts designed for solder termination. The polyamide (PA46) insulation is UL94 V-0 rated and offers a compact insulation height of 8.81mm. Operating within a temperature range of -55°C to 105°C, this header is suitable for board-to-cable/wire applications. It is commonly utilized in industrial automation, consumer electronics, and automotive sectors.
Additional Information
Series: MTA-100RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | - |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.135"" (3.43mm) |
| Insulation Height | 0.347"" (8.81mm) |
| Shrouding | Shrouded - 1 Wall |
| Overall Contact Length | 0.550"" (13.97mm) |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.290"" (7.37mm) |
