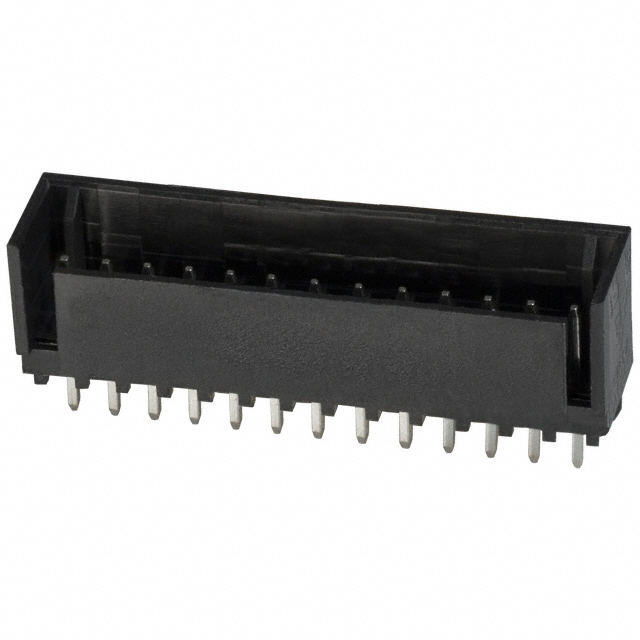

3-644861-3
CONN HEADER VERT 13POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors MTA-100 series offers a 13-position vertical header, part number 3-644861-3. This through-hole component features a 0.100" (2.54mm) pitch and shrouded housing with four walls for robust connection. The male pin contacts are made from copper alloy with tin plating on both mating and post finishes, ensuring reliable conductivity. Designed for board-to-cable/wire applications, it supports a 250VAC voltage rating and operates within a -55°C to 105°C temperature range. The polyester insulation, rated UL94 V-0, contributes to its suitability in demanding environments across industrial automation, consumer electronics, and automotive sectors. Termination is via solder.
Additional Information
Series: MTA-100RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole |
| Number of Positions | 13 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.140"" (3.56mm) |
| Insulation Height | 0.410"" (10.41mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | 0.440"" (11.18mm) |
| Insulation Material | Polyester |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.200"" (5.08mm) |
