3-644803-2
CONN HEADER R/A 12POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

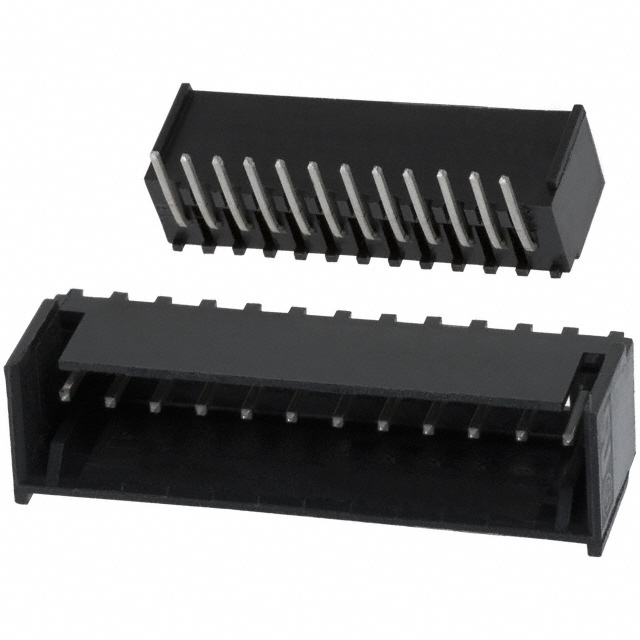

TE Connectivity AMP Connectors MTA-100 Series connector header, part number 3-644803-2, is a 12-position, right-angle, through-hole component with a 2.54mm pitch. This shrouded header features male pin contacts made of a copper alloy with tin plating for mating and post connections. The polyester insulation is rated UL94 V-0 and is black in color, with an insulation height of 8.71mm. Designed for board-to-cable/wire applications, it offers a friction lock for secure mating and operates within a temperature range of -55°C to 105°C. Its 250VAC voltage rating and tin contact finish make it suitable for applications in industrial automation, automotive electronics, and consumer goods.
Additional Information
Series: MTA-100RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.130"" (3.30mm) |
| Insulation Height | 0.343"" (8.71mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyester |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.200"" (5.08mm) |
