3-644486-1
CONN HEADER VERT 11POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

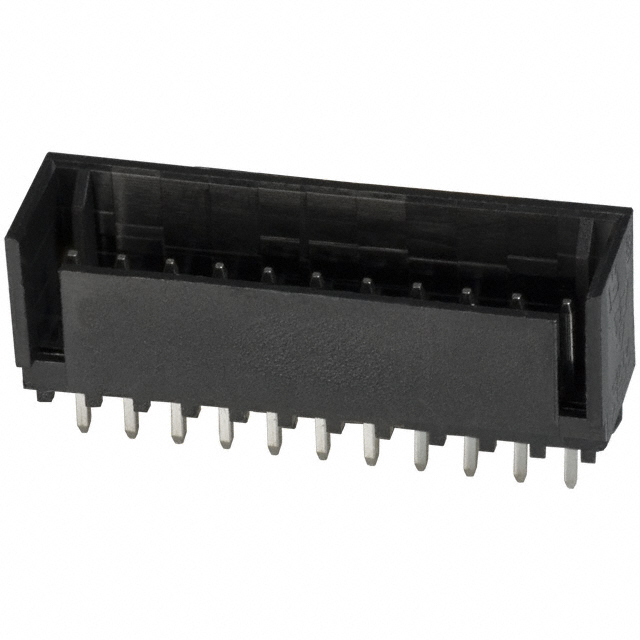

TE Connectivity AMP Connectors MTA-100 series 3-644486-1 is a shrouded, 11-position, single-row header designed for through-hole mounting. Featuring a 2.54mm (0.100") pitch, this component utilizes male pin contacts made from copper alloy with a tin finish. The header has a polyester insulation material with a UL94 V-0 flammability rating and a black color. Key features include a friction lock for secure mating and a board guide. The operating temperature range is -55°C to 105°C, with a voltage rating of 250VAC. This connector is suitable for board-to-cable/wire applications and finds use in industrial automation and consumer electronics.
Additional Information
Series: MTA-100RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole |
| Number of Positions | 11 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.140"" (3.56mm) |
| Insulation Height | 0.410"" (10.41mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | 0.440"" (11.18mm) |
| Insulation Material | Polyester |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.200"" (5.08mm) |
