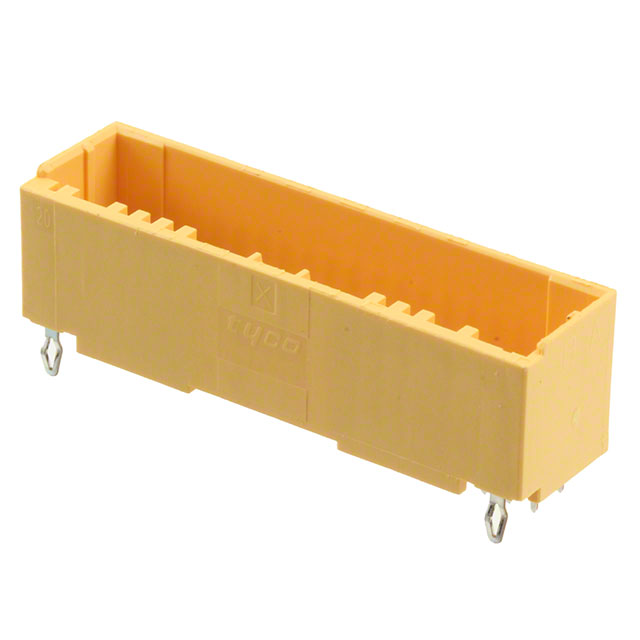

3-1871056-0
CONN HEADER VERT 40POS 2MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 40 position 0.079"" (2.00mm)
Additional Information
Series: Dynamic D-1100RoHS Status: Request inventory verificationManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 125V |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Yellow |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.120"" (3.05mm) |
| Insulation Height | 0.490"" (12.44mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Row Spacing - Mating | 0.130"" (3.30mm) |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy

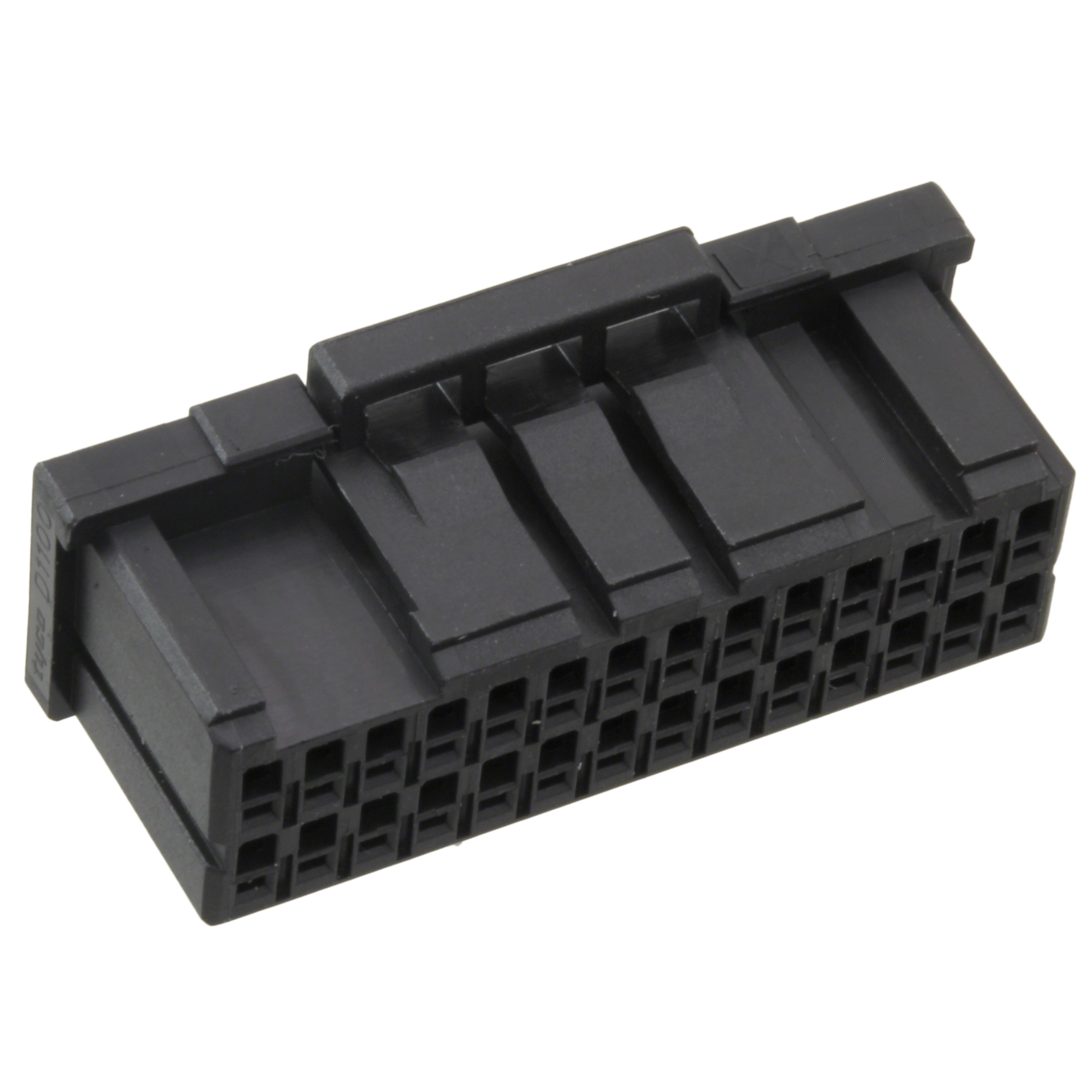

1-1827863-4
CONN RCPT HSG 28POS 2.00MM

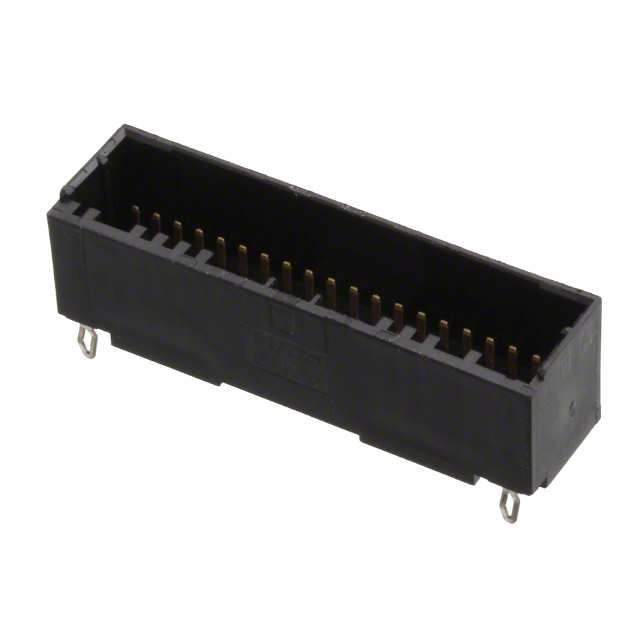

1-1827872-0
CONN HEADER VERT 40POS 2MM

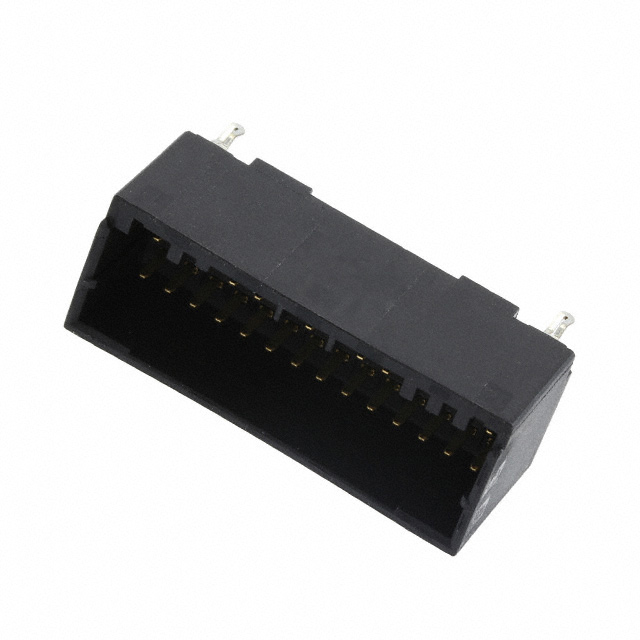

1-1827872-4
