281276-2
CONN HEADER VERT 34POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

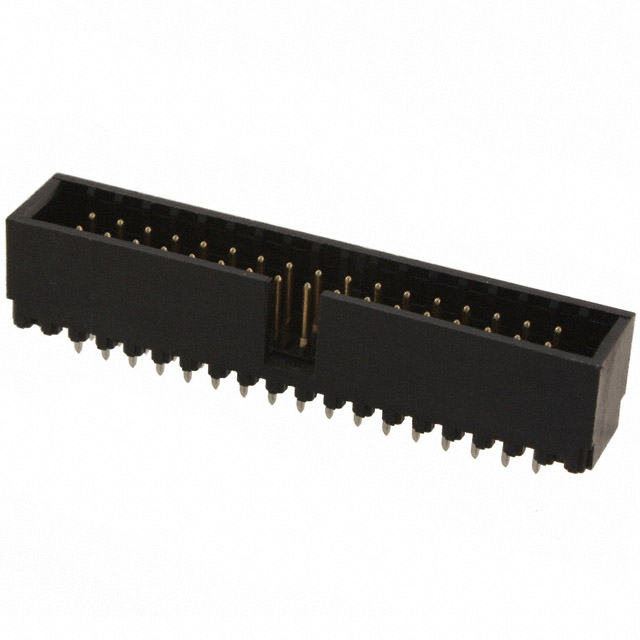

TE Connectivity AMP Connectors AMP-Latch series connector header, part number 281276-2, features a 34-position, 2-row configuration with a 2.54mm pitch. This through-hole mount header offers male square pin contacts with gold mating finish and tin post finish, providing a mating contact finish thickness of 15.0µin. The header is constructed with a black, shrouded (4 Wall) PBT, glass-filled insulation for robust mechanical and electrical isolation. Designed with a keying slot for proper orientation, this connector is suitable for board-to-cable/wire style applications. Its push-pull fastening type ensures secure mating. Applications can be found in industrial automation, telecommunications, and consumer electronics sectors.
Additional Information
Series: AMP-LatchRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Keying Slot |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.118"" (3.00mm) |
| Insulation Height | 0.402"" (10.20mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | - |
