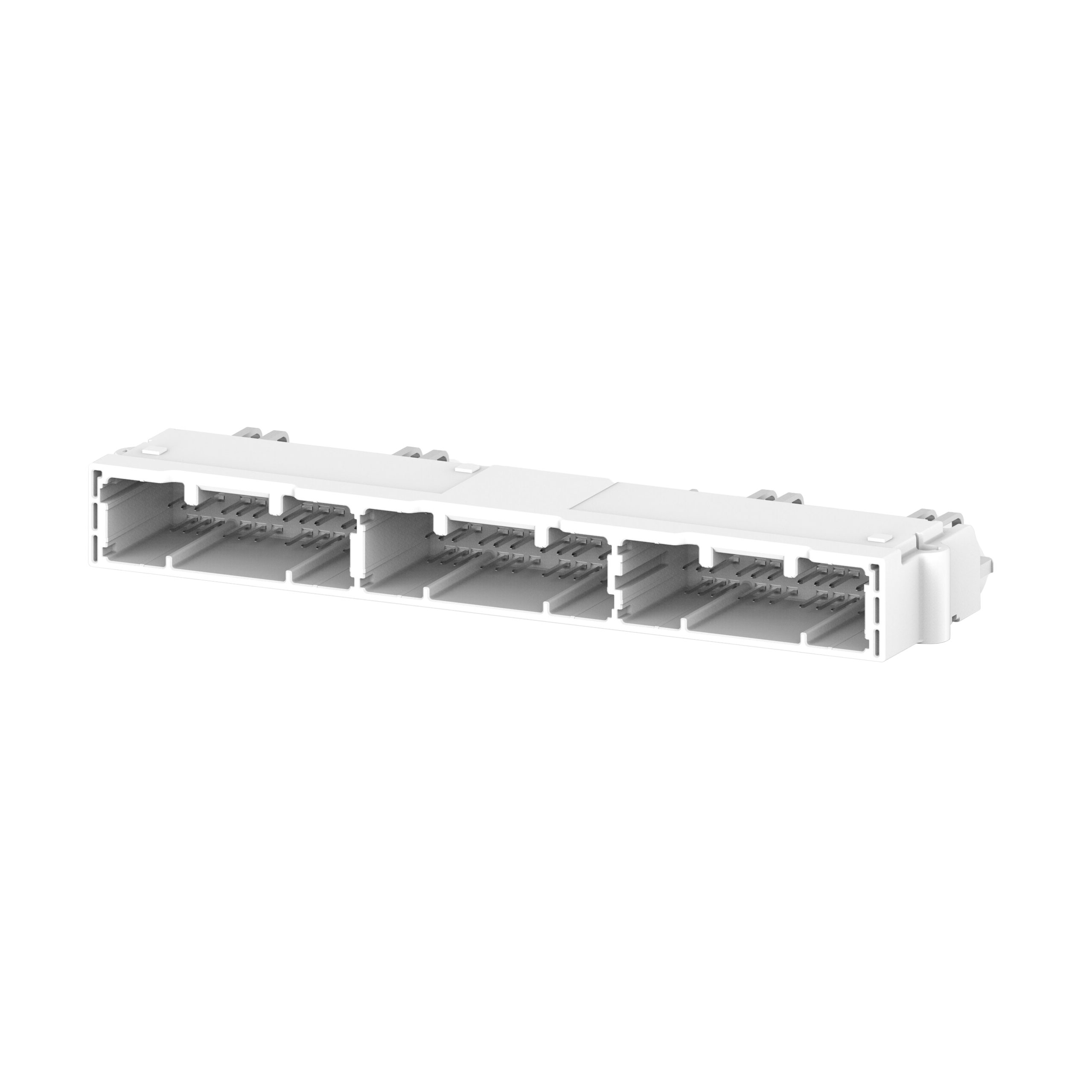

2288662-1
0.5/1.5 86P CAP ASSEMBLYManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 86 position
Additional Information
Series: 0.5RoHS Status: RoHS CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | 12VDC |
| Current Rating (Amps) | 1A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 86 |
| Number of Rows | 3 |
| Style | Board to Cable/Wire |
| Operating Temperature | -30°C ~ 85°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 HB |
| Contact Material | Brass |
| Insulation Color | Natural |
| Pitch - Mating | - |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Shape | Rectangular, Square |
| Contact Length - Post | 0.126"" (3.20mm) |
| Insulation Height | - |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Syndiotactic Polystyrene (SPS) |
| Row Spacing - Mating | 0.110"" (2.80mm) |
| Contact Length - Mating | - |
