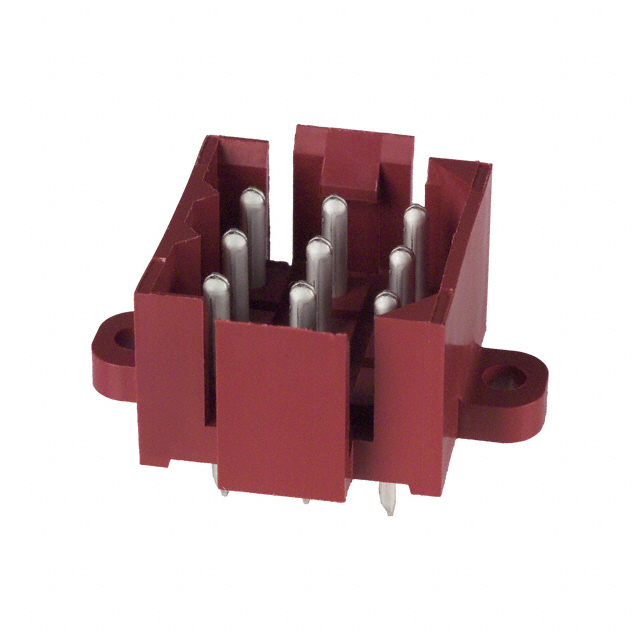

207441-7
CONN HEADER VERT 9POS 5MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 9 position 0.197"" (5.00mm)
Additional Information
Series: MetrimateRoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 600V |
| Current Rating (Amps) | 7.5A |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 130°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black, Red |
| Pitch - Mating | 0.197"" (5.00mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Circular |
| Contact Length - Post | 0.181"" (4.60mm) |
| Insulation Height | 0.464"" (11.79mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.197"" (5.00mm) |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy
1-206763-2
CONN HEADER VERT 24POS 5MM

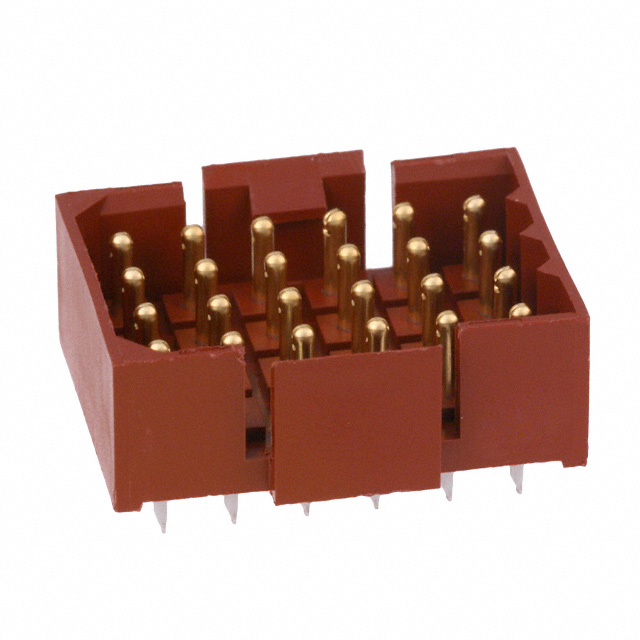

1-206763-4
CONN HEADER VERT 24POS 5MM

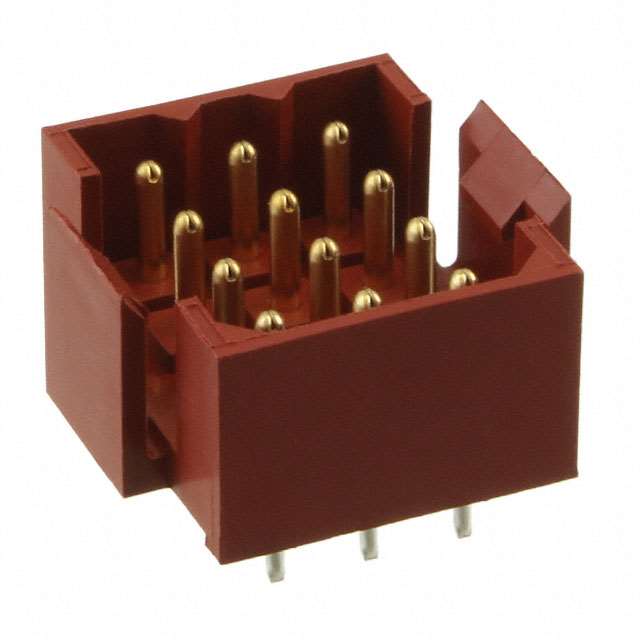

1-207120-1
