207378-1

Banner
productimage

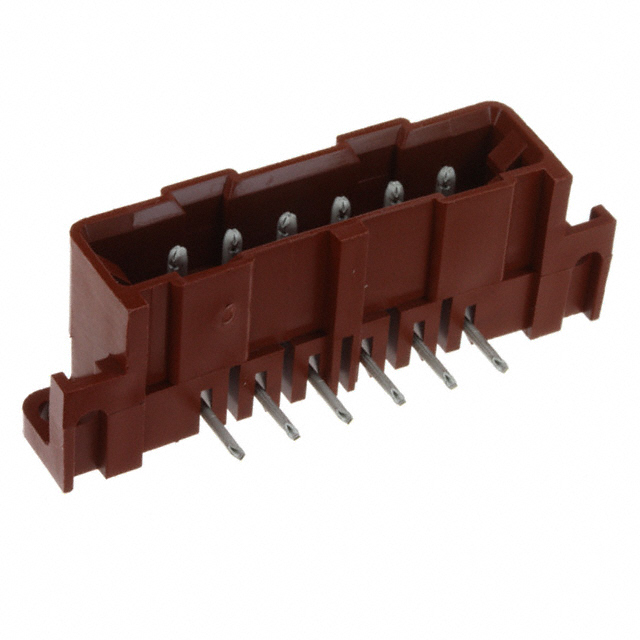

207378-1

CONN HEADER R/A 6POS 5MM

Manufacturer: TE Connectivity AMP Connectors

Categories: Headers, Male Pins

Quality Control: Learn More

TE Connectivity AMP Connectors Metrimate series header, part number 207378-1, is a right-angle, through-hole mount connector with 6 positions on a 5.00mm pitch. This shrouded header features tin-lead plated brass male pin contacts, offering a 7.5A current rating and a 600V voltage rating. The polyamide (PA) insulation is rated UL94 V-0 and is red in color. The contact post length is 4.88mm. This component is suitable for board-to-board or cable applications and is supplied in tube packaging. It finds application in industrial automation, medical equipment, and telecommunications.

Additional Information

Series: MetrimateRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:
Technical Details:
FeaturesMounting Flange
PackagingTube
Connector TypeHeader
Voltage Rating600V
Current Rating (Amps)7.5A
Mounting TypeThrough Hole, Right Angle
Number of Positions6
Number of Rows1
StyleBoard to Board or Cable
Operating Temperature-55°C ~ 130°C
Contact TypeMale Pin
Fastening TypeLatch Holder
Number of Positions LoadedAll
TerminationSolder
Ingress Protection-
Material Flammability RatingUL94 V-0
Contact MaterialBrass
Insulation ColorRed
Pitch - Mating0.197"" (5.00mm)
Contact Finish - MatingTin-Lead
Contact Finish Thickness - Mating150.0µin (3.81µm)
Contact Finish - PostTin-Lead
Contact ShapeCircular
Contact Length - Post0.192"" (4.88mm)
Insulation Height0.500"" (12.70mm)
ShroudingShrouded - 4 Wall
Overall Contact Length-
Insulation MaterialPolyamide (PA), Nylon
Row Spacing - Mating-
Contact Length - Mating-
