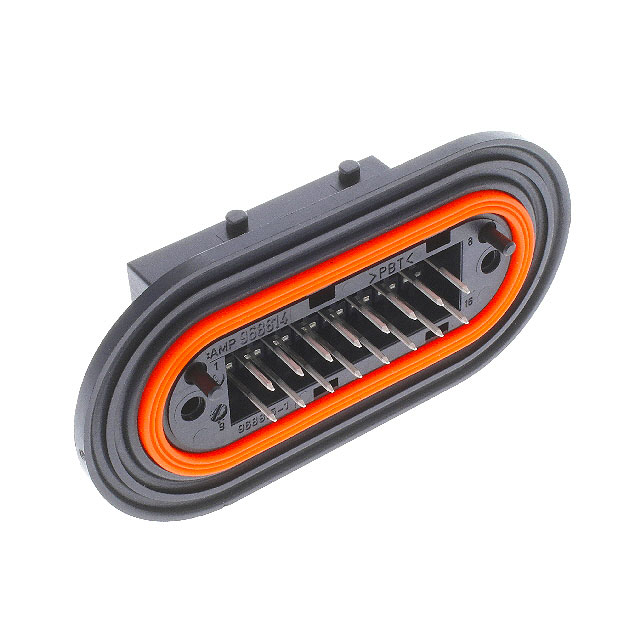

2-968814-2
CONN HEADER VERT 16POSManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 16 position
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Mounting Flange, Sealed |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Lever Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | - |
| Contact Finish - Mating | - |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Shape | Rectangular |
| Contact Length - Post | - |
| Insulation Height | 1.008"" (25.60mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
