2-966658-3

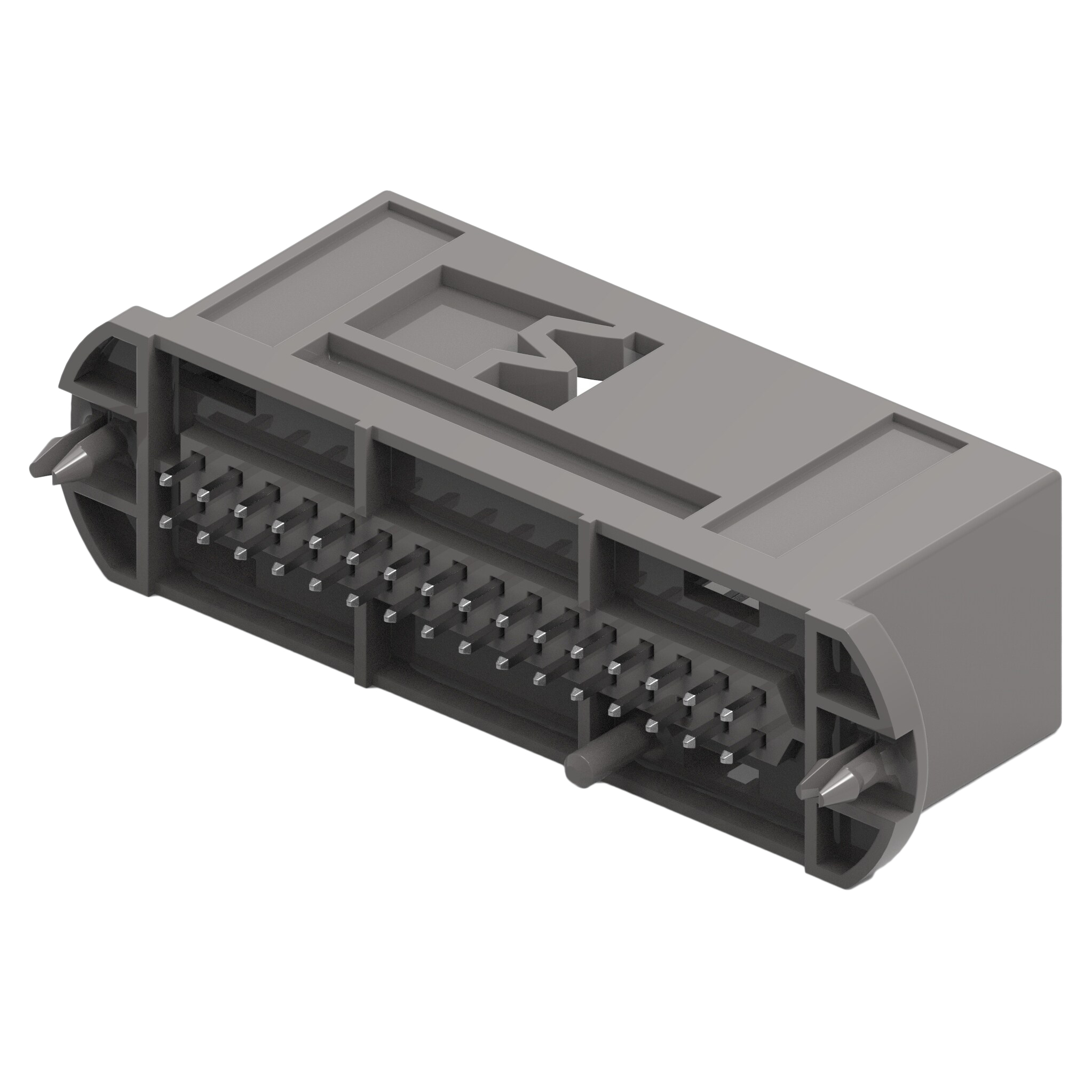

CONN HEADER VERT 32POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 32 position 0.100"" (2.54mm)
Additional Information
Series: AMPMODU Mod IIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 12V |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 32 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -40°C ~ 110°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Brass |
| Insulation Color | Gray |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.098"" (2.50mm) |
| Insulation Height | 0.795"" (20.20mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | 0.520"" (13.21mm) |
| Insulation Material | Polyphthalamide (PPA), Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.268"" (6.80mm) |
