2-647126-2

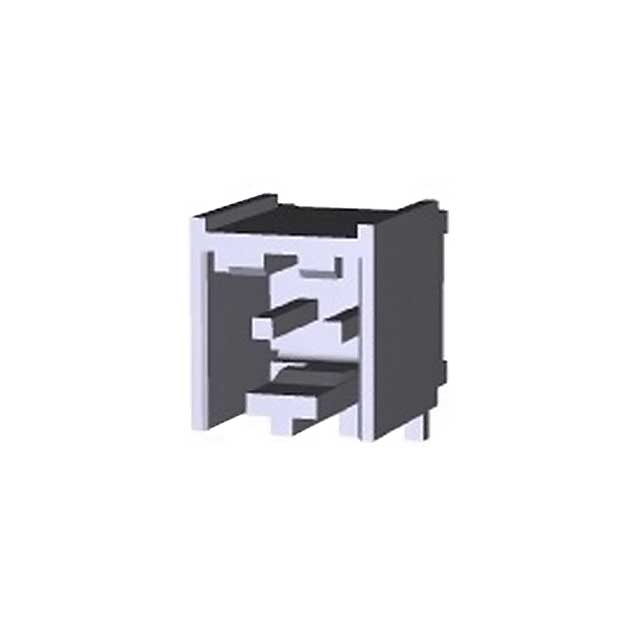

CONN HEADER R/A 2POS 3.96MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors MTA-156 Series, Part Number 2-647126-2, is a shrouded, right-angle header with a 0.156" (3.96mm) pitch. This 2-position connector features male pin contacts made from copper alloy with a tin finish for both mating and post connections, boasting a mating contact finish thickness of 150.0µin (3.81µm). The header is constructed from UL94 V-0 rated glass-filled thermoplastic, ensuring robust insulation with a height of 0.455" (11.56mm) and a black color. Designed for board-to-cable/wire applications, it utilizes a friction lock fastening type and is terminated via solder. The operating temperature range is -55°C to 105°C, with a voltage rating of 600VAC. This component is suitable for applications within the automotive, industrial, and consumer electronics sectors.
Additional Information
Series: MTA-156RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 600VAC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.156"" (3.96mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.455"" (11.56mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.300"" (7.62mm) |
