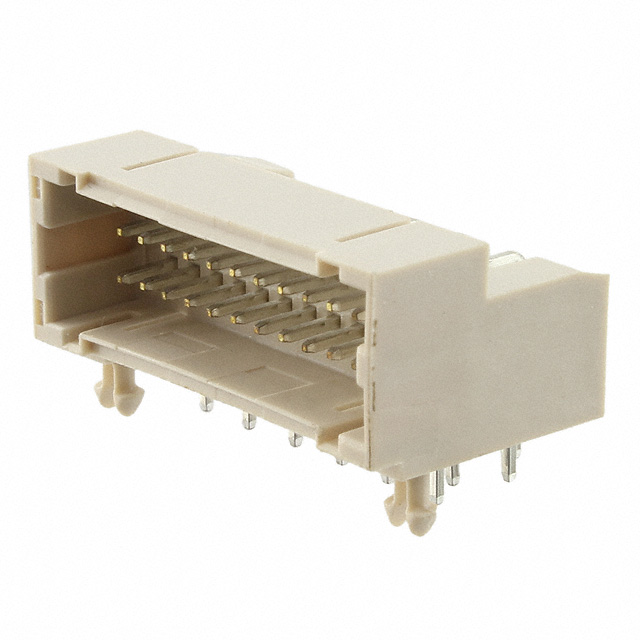

CONN HEADER R/A 22POS 1.5MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 22 position 0.059"" (1.50mm)
Additional Information
Series: Mini CTRoHS Status: Request inventory verificationManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 50VAC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -30°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Gray |
| Pitch - Mating | 0.059"" (1.50mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.118"" (3.00mm) |
| Insulation Height | 0.358"" (9.10mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Row Spacing - Mating | 0.079"" (2.00mm) |
| Contact Length - Mating | - |
