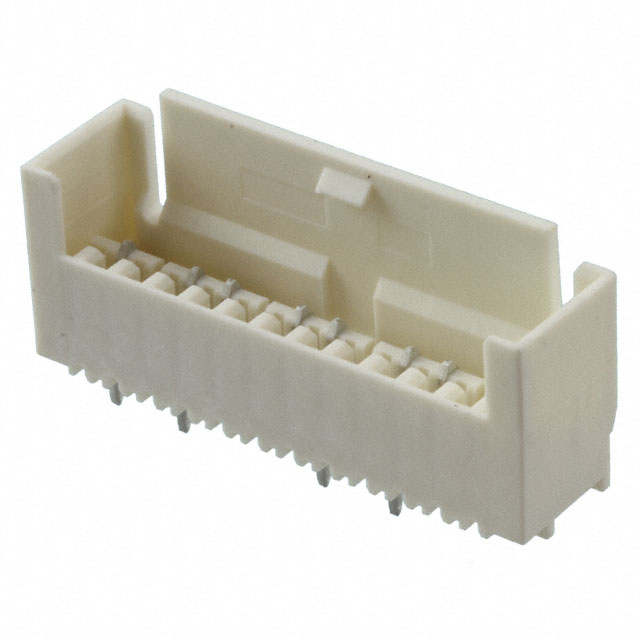

2-1971818-2

CONN HEADER VERT 12POS 2.5MM

Manufacturer: TE Connectivity AMP Connectors

Categories: Headers, Male Pins

Quality Control: Learn More

TE Connectivity AMP Connectors, Header, 2-1971818-2. This 12-position, single-row header features a 2.50mm pitch and a through-hole mounting style. The connector is shrouded with 4 walls for robust mating and includes a locking ramp for secure assembly. Contacts are a copper alloy with a tin finish for both mating and post. Key features include board guides and glow wire compliance, with an insulation material of Polyamide (PA) and Nylon rated UL94 V-0. Operating temperature ranges from -40°C to 120°C. This component is suitable for board-to-cable/wire applications in industries such as automotive and industrial automation.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
FeaturesBoard Guide, Glow Wire Compliant
PackagingBulk
Connector TypeHeader
Voltage Rating-
Current Rating (Amps)-
Mounting TypeThrough Hole
Number of Positions12
Number of Rows1
StyleBoard to Cable/Wire
Operating Temperature-40°C ~ 120°C
Contact TypeTab
Fastening TypeLocking Ramp
Number of Positions LoadedAll
TerminationSolder
Ingress Protection-
Material Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Insulation ColorNatural
Pitch - Mating0.098"" (2.50mm)
Contact Finish - MatingTin
Contact Finish Thickness - Mating-
Contact Finish - PostTin
Contact ShapeRectangular
Contact Length - Post0.114"" (2.90mm)
Insulation Height0.610"" (15.49mm)
ShroudingShrouded - 4 Wall
Overall Contact Length-
Insulation MaterialPolyamide (PA), Nylon
Row Spacing - Mating-
Contact Length - Mating-
