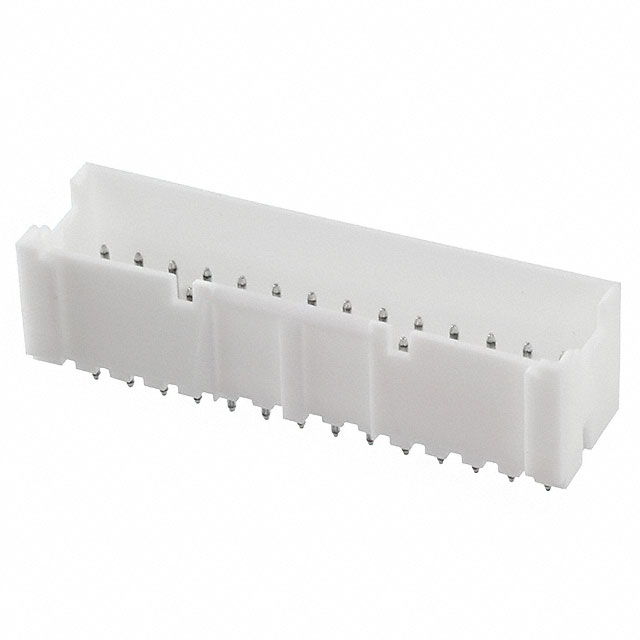

2-1969582-8
CONN HEADER VERT 28POS 2.5MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 28 position 0.098"" (2.50mm)
Additional Information
Series: Economy Power 2.5RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | 4.2A |
| Mounting Type | Through Hole |
| Number of Positions | 28 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Number of Positions Loaded | All |
| Termination | Kinked Pin, Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | White |
| Pitch - Mating | 0.098"" (2.50mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Circular |
| Contact Length - Post | 0.134"" (3.40mm) |
| Insulation Height | 0.386"" (9.80mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Row Spacing - Mating | 0.098"" (2.50mm) |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy
1-2323750-0
ASSY,HDR,RIGHT ANGLE,GWT,DUAL RO

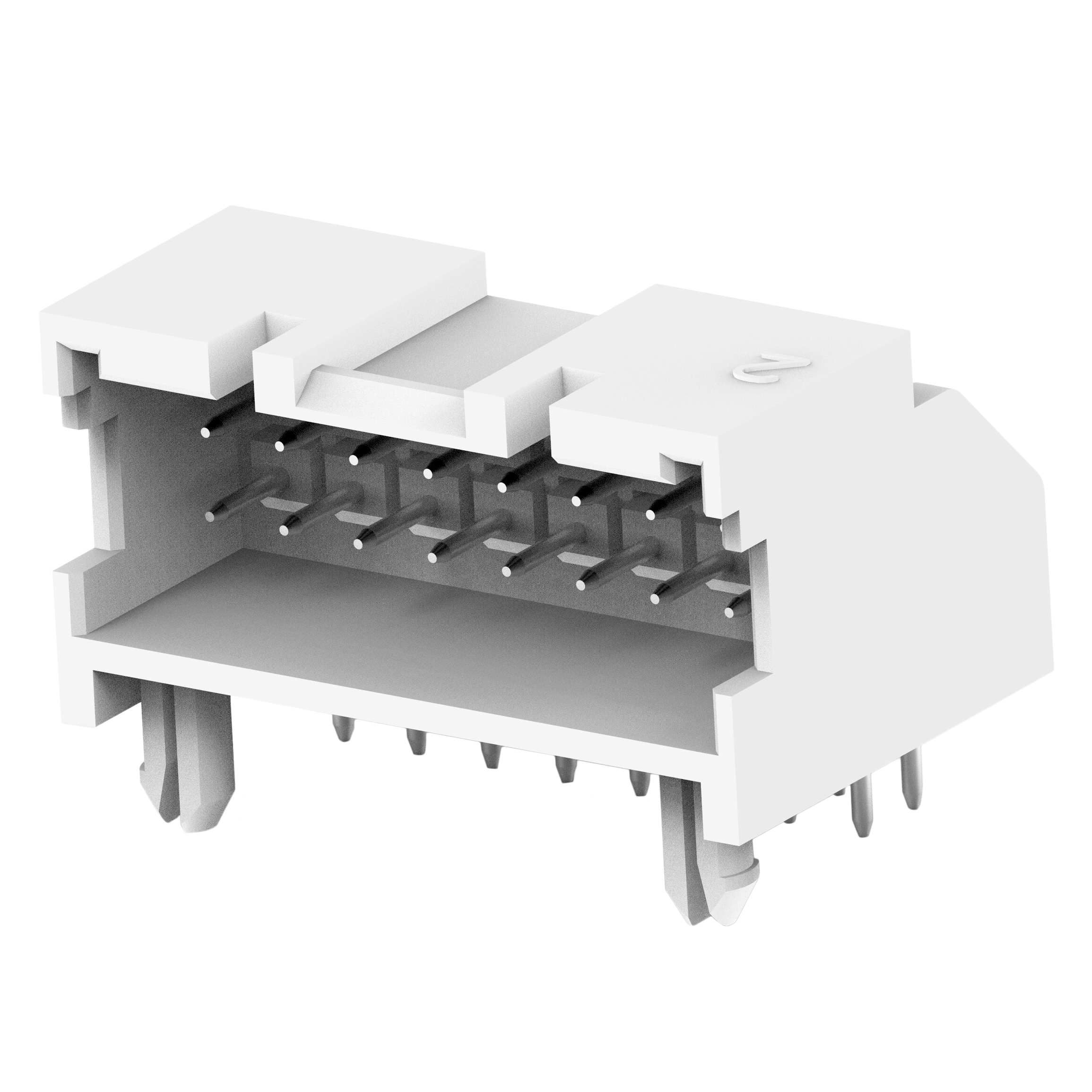

1-2323750-6
ASSY,HDR,RIGHT ANGLE,GWT,DUAL RO

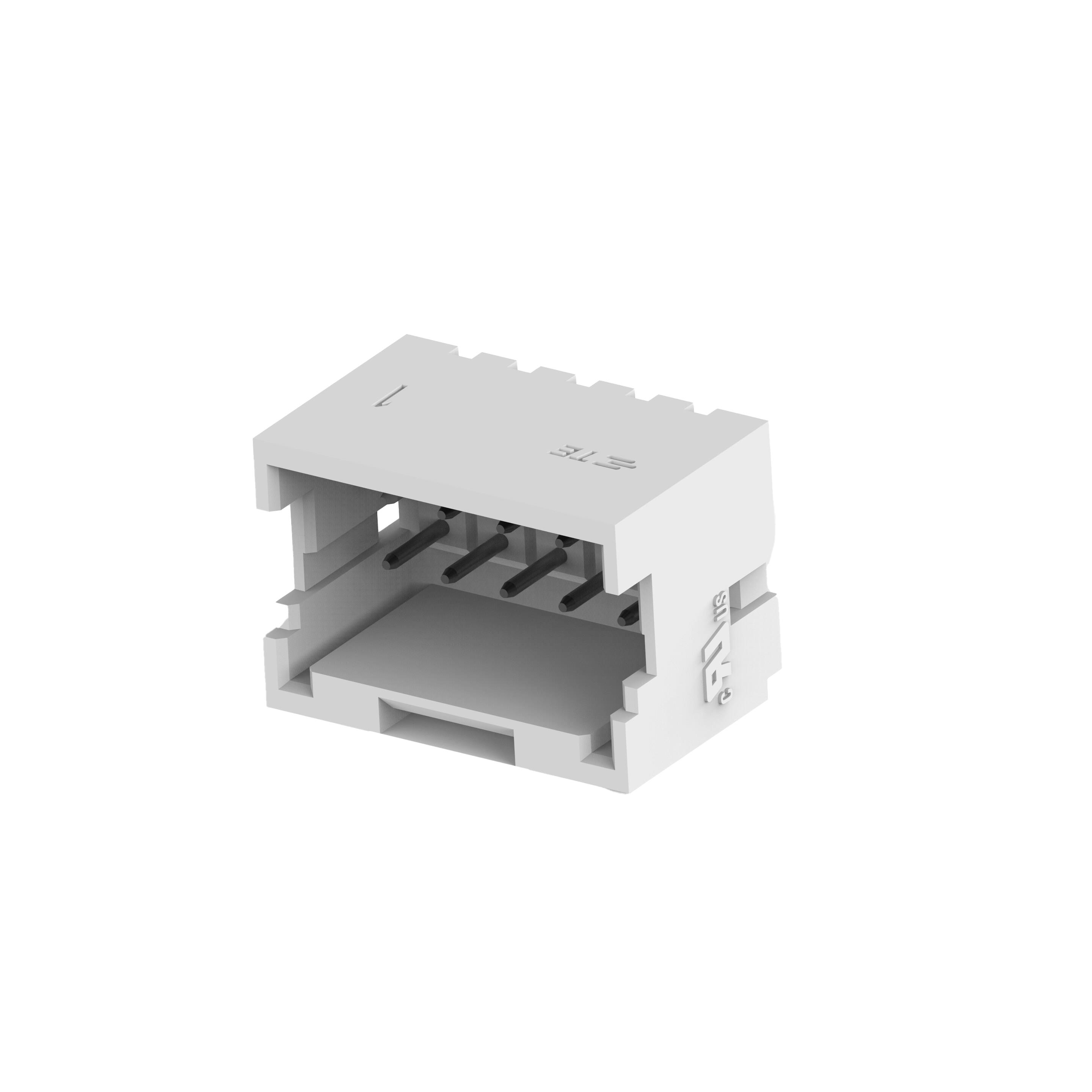

1-2324245-0
