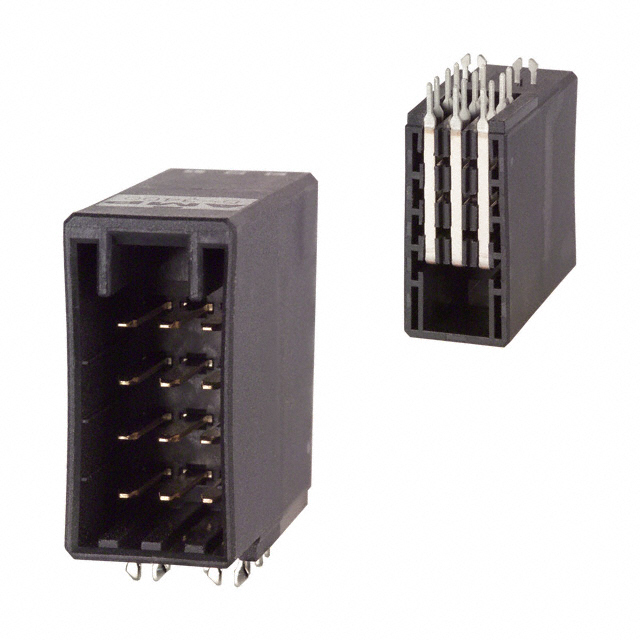

2-178216-2
CONN HEADER R/A 12POS 3.81MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 12 position 0.150"" (3.81mm)
Additional Information
Series: Dynamic D-3400RoHS Status: Request inventory verificationManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250V |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Rows | 4 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Tab |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.150"" (3.81mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Rectangular |
| Contact Length - Post | 0.150"" (3.81mm) |
| Insulation Height | 1.244"" (31.60mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Row Spacing - Mating | 0.200"" (5.08mm) |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy
1-178216-2
CONN HEADER R/A 12POS 3.81MM
178216-2
CONN HEADER R/A 12POS 3.81MM

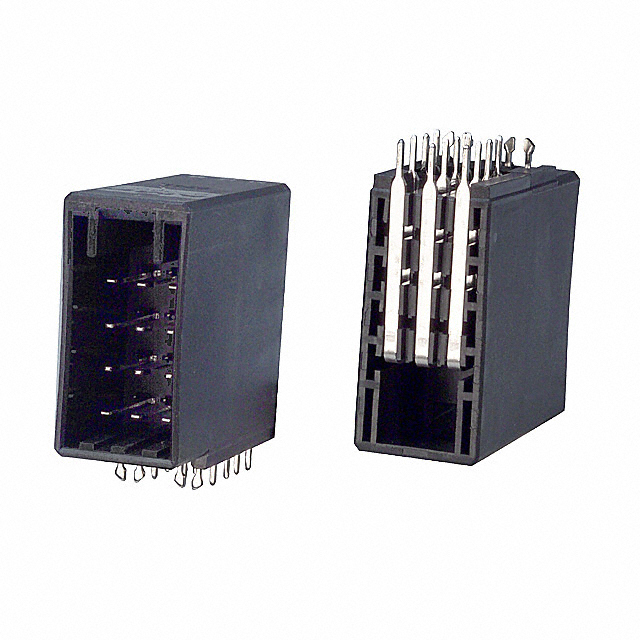

178216-5
