2-178137-5
CONN HEADER R/A 6POS 3.81MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

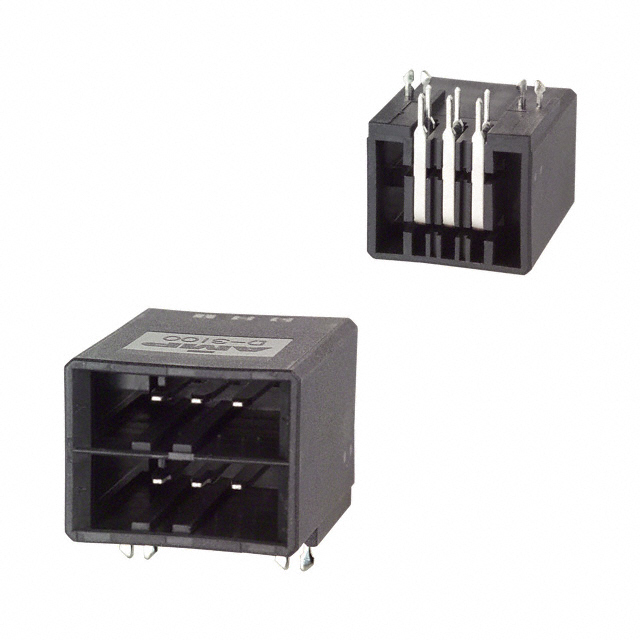

Connector Header Through Hole, Right Angle 6 position 0.150"" (3.81mm)
Additional Information
Series: Dynamic D-3100RoHS Status: Request inventory verificationManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250V |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Tab |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.150"" (3.81mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Rectangular |
| Contact Length - Post | 0.131"" (3.33mm) |
| Insulation Height | 0.668"" (16.97mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Row Spacing - Mating | 0.300"" (7.62mm) |
| Contact Length - Mating | - |
