2-1734569-0

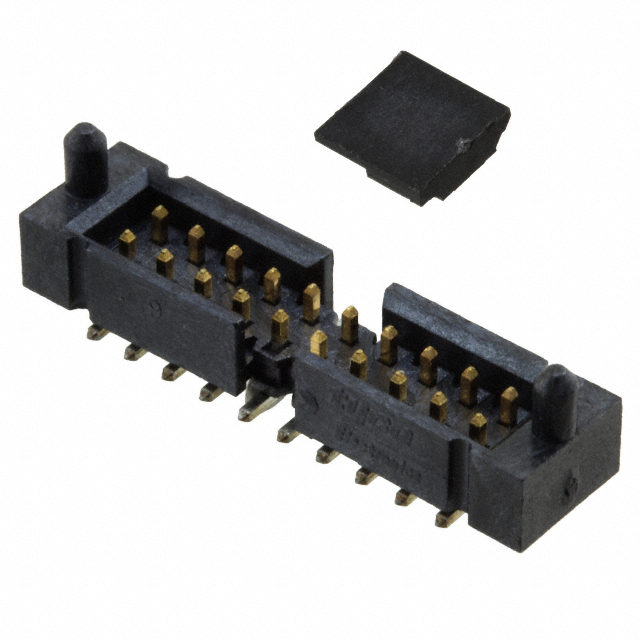

CONN HEADER SMD 20POS 2MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors AMPMODU Series 2-1734569-0 is a 20-position shrouded header designed for surface mount applications. This connector features a 0.079" (2.00mm) pitch and dual rows, providing a compact board-to-board or cable interface. The male pins are constructed from Phosphor Bronze with gold plating on the mating contacts (30.0µin / 0.76µm) and tin plating on the post contacts. The insulator, made from UL94 V-0 rated LCP with glass fill, offers a 0.177" (4.50mm) insulation height and is black in color. Keying slots and mating guides facilitate proper assembly, while board guides and pick-and-place compatibility enhance manufacturing efficiency. This component supports a 3A current rating and a 500VAC voltage rating, operating within a temperature range of -65°C to 125°C. Packaging is supplied on tape and reel. It is commonly employed in consumer electronics and industrial automation.
Additional Information
Series: AMPMODURoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Keying Slot, Mating Guide, Pick and Place |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header |
| Voltage Rating | 500VAC |
| Current Rating (Amps) | 3A |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.177"" (4.50mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Row Spacing - Mating | 0.079"" (2.00mm) |
| Contact Length - Mating | - |
