2-1586041-2

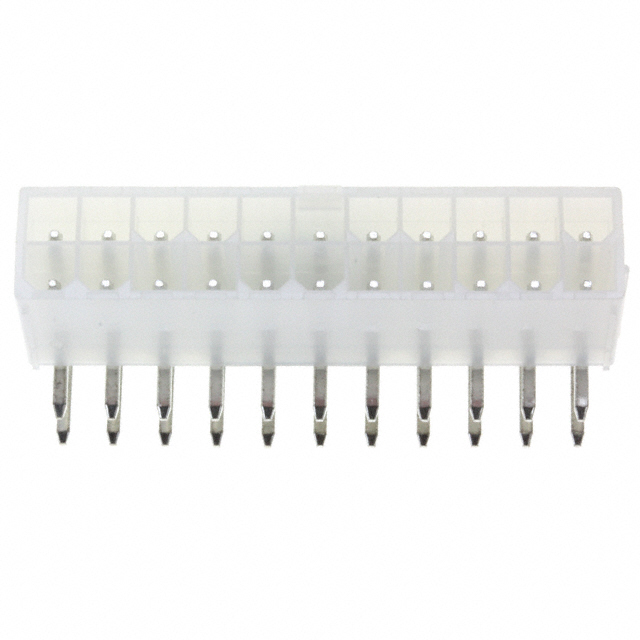

CONN HEADER R/A 22POS 4.2MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 22 position 0.165"" (4.20mm)
Additional Information
Series: VAL-U-LOKRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 600VAC |
| Current Rating (Amps) | 9A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-2 |
| Contact Material | Brass Alloy |
| Insulation Color | Natural |
| Pitch - Mating | 0.165"" (4.20mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.142"" (3.60mm) |
| Insulation Height | 0.402"" (10.20mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.165"" (4.20mm) |
| Contact Length - Mating | - |
