2-1586039-2

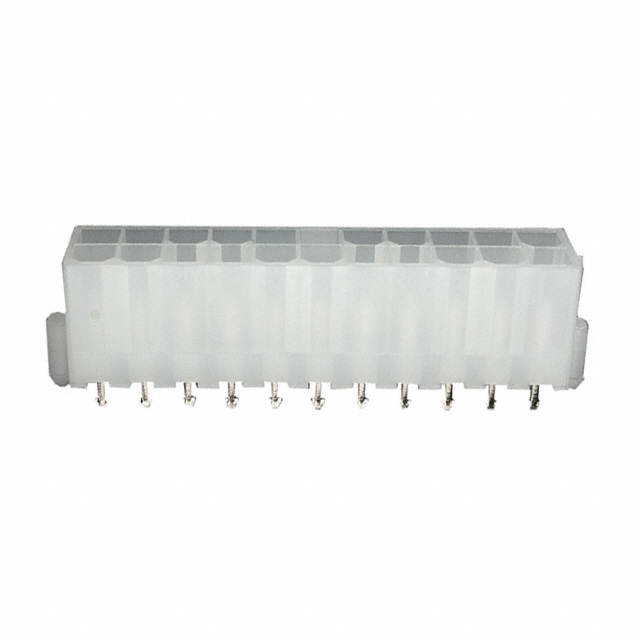

CONN HEADER VERT 22POS 4.2MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors presents the VAL-U-LOK series 2-1586039-2, a 22-position shrouded header with a 4.2mm pitch. This through-hole mounted connector features a vertical orientation and a board-to-cable/wire style. The male pin contacts, made of brass alloy, are tin-plated with a mating thickness of 80.0µin (2.03µm) and a post length of 0.138" (3.50mm). Rated for 600VAC and 9A, it incorporates a locking ramp for secure mating and a board lock feature. The natural-colored polyamide (PA66) insulation meets UL94 V-2 flammability standards and offers an insulation height of 0.504" (12.80mm). Operating within a temperature range of -40°C to 105°C, this component is suitable for various industrial and automotive applications. The unit is supplied in tray packaging.
Additional Information
Series: VAL-U-LOKRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 600VAC |
| Current Rating (Amps) | 9A |
| Mounting Type | Through Hole |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-2 |
| Contact Material | Brass Alloy |
| Insulation Color | Natural |
| Pitch - Mating | 0.165"" (4.20mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.138"" (3.50mm) |
| Insulation Height | 0.504"" (12.80mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Row Spacing - Mating | 0.165"" (4.20mm) |
| Contact Length - Mating | - |
