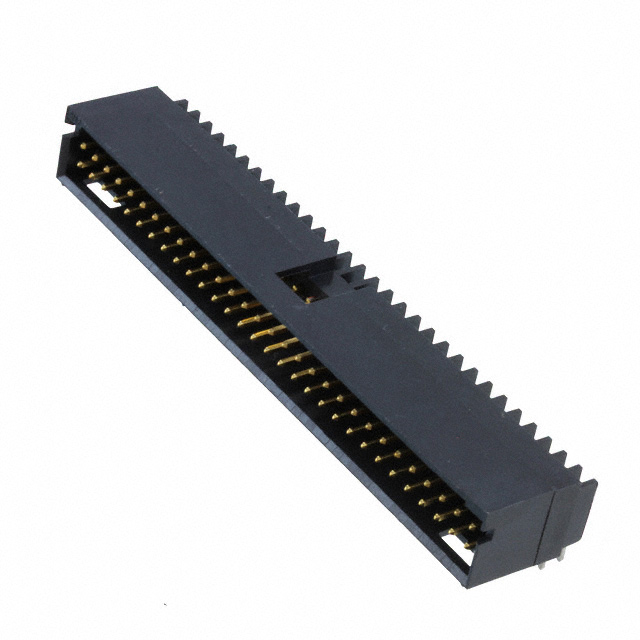

2-103166-8
CONN HEADER R/A 60POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors AMPMODU Mod II series connector header, part number 2-103166-8, is a right-angle through-hole component designed for board-to-board or cable applications. This shrouded header features 60 positions arranged in two rows with a 2.54mm pitch. The male pin contacts, made of phosphor bronze, offer a gold mating finish with a thickness of 30.0µin (0.76µm) and a tin-lead post finish. With a 3A current rating, this header is suitable for demanding applications in the industrial automation, medical, and telecommunications sectors. The thermoplastic insulation is rated UL94 V-0 and the operating temperature range is -65°C to 105°C. The component is supplied in tray packaging.
Additional Information
Series: AMPMODU Mod IIRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.135"" (3.43mm) |
| Insulation Height | 0.400"" (10.16mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.318"" (8.08mm) |
