2-102699-3
CONN HEADER VERT 50POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

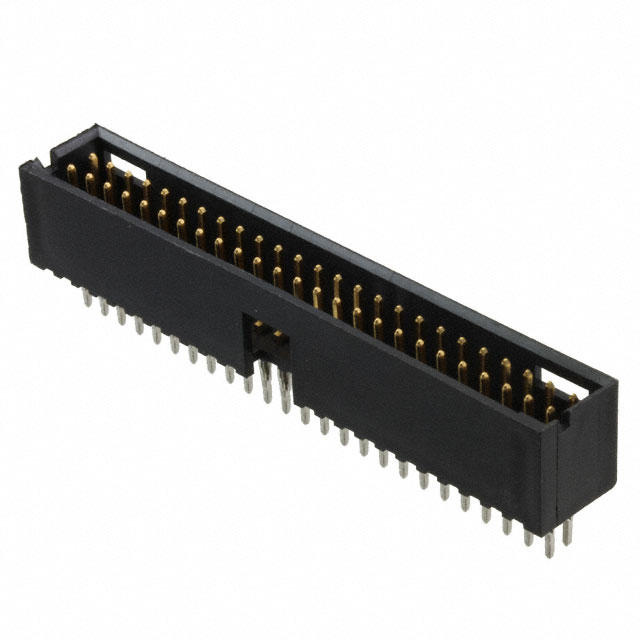

TE Connectivity AMP Connectors AMPMODU Mod II 2-102699-3 is a shrouded, vertical header with 50 positions arranged in two rows. This through-hole mount component features a 2.54mm (0.100") pitch and utilizes male pin contacts made from copper alloy with a square cross-section. Mating contacts are finished with 30µin gold plating for superior conductivity, while the post contacts feature a tin-lead finish. The header has a current rating of 3A and an operating temperature range of -55°C to 105°C. The black thermoplastic insulation is rated UL94 V-0 for material flammability. This connector is suitable for board-to-board or cable applications and offers detent locking for secure mating. It is commonly found in industrial automation, consumer electronics, and telecommunications equipment.
Additional Information
Series: AMPMODU Mod IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Press-Fit, Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.250"" (6.35mm) |
| Insulation Height | 0.440"" (11.18mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | 0.660"" (16.76mm) |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.320"" (8.13mm) |
