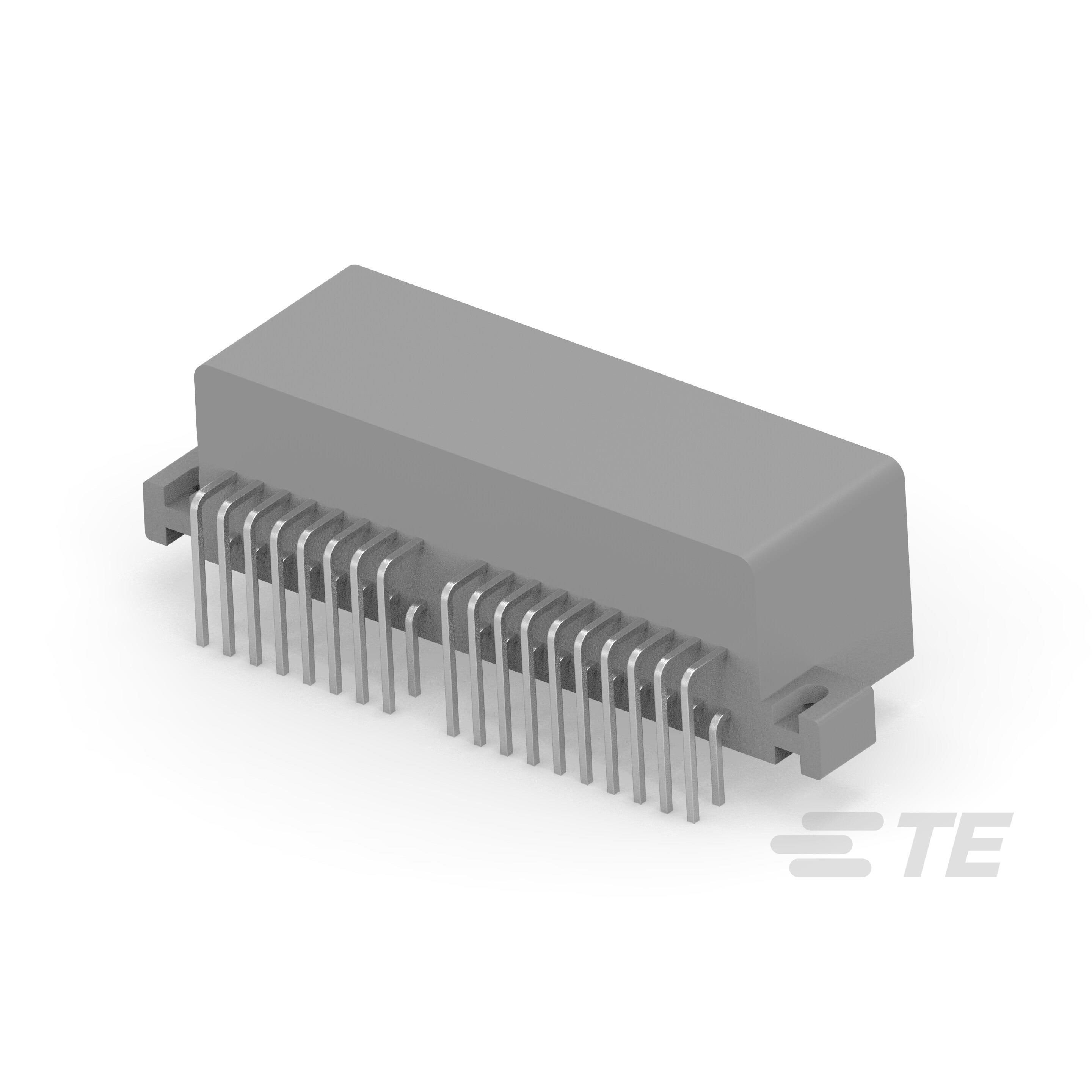

179059-6
CONN HEADER R/A 36POS 2.5MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 36 position 0.098"" (2.50mm)
Additional Information
Series: Multi-LockRoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange |
| Packaging | Bulk |
| Connector Type | - |
| Voltage Rating | - |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 120°C |
| Contact Type | Tab |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Brass |
| Insulation Color | Gray |
| Pitch - Mating | 0.098"" (2.50mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Rectangular |
| Contact Length - Post | - |
| Insulation Height | 0.665"" (16.90mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Row Spacing - Mating | 0.205"" (5.20mm) |
| Contact Length - Mating | 0.276"" (7.00mm) |
