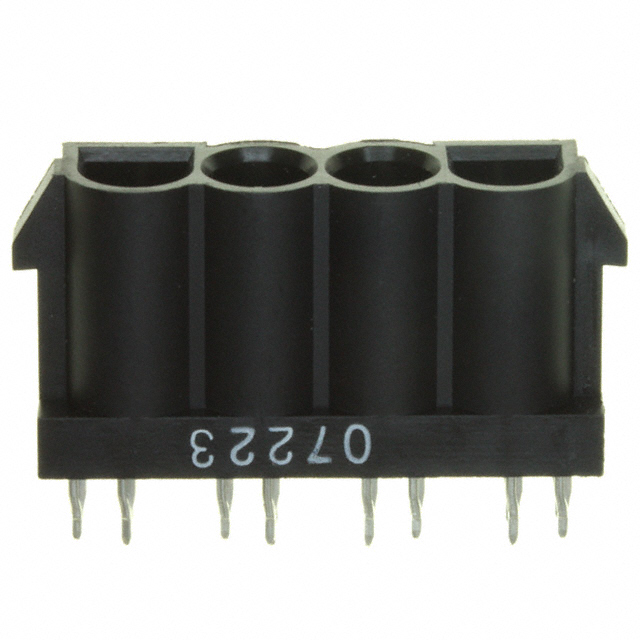

173926-1
CONN HEADER VERT 4POS 6.35MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 4 position 0.250"" (6.35mm)
Additional Information
Series: Universal MATE-N-LOKRoHS Status: Request inventory verificationManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 500VAC |
| Current Rating (Amps) | 15A |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Style | Board to Board or Cable |
| Operating Temperature | -25°C ~ 85°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Press-Fit, Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.250"" (6.35mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin |
| Contact Shape | - |
| Contact Length - Post | 0.189"" (4.80mm) |
| Insulation Height | 0.624"" (15.85mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | 0.764"" (19.40mm) |
| Insulation Material | Thermoplastic, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
Request a Quote
