1586892-3
03P UMNL HDR ASSY R/A, GW V0Manufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

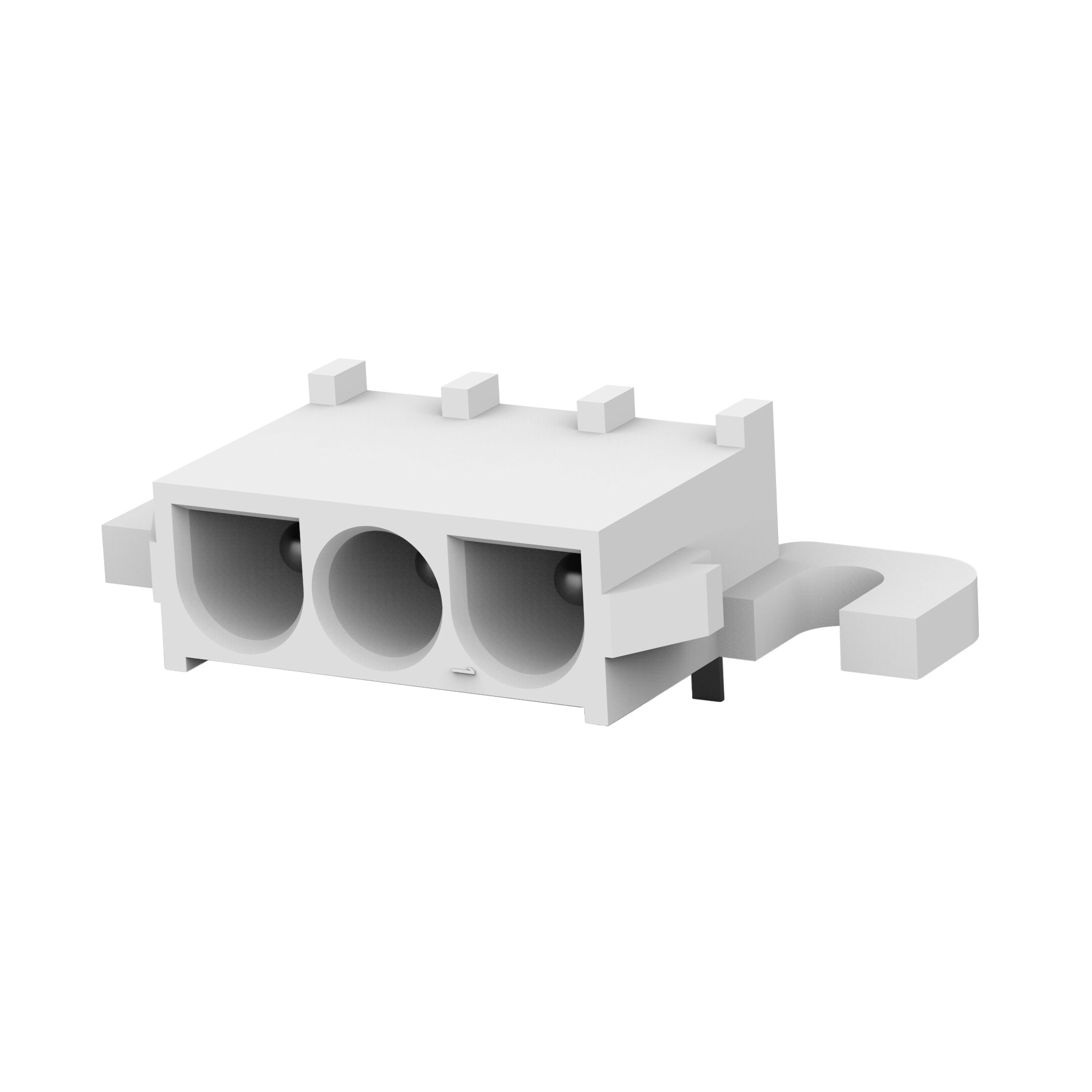

Connector Header Through Hole, Right Angle 3 position 0.250"" (6.35mm)
Additional Information
Series: Universal MATE-N-LOKRoHS Status: Request inventory verificationManufacturer Lead Time: 44 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange |
| Packaging | Box |
| Connector Type | Header |
| Voltage Rating | 600VAC |
| Current Rating (Amps) | 12A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Natural |
| Pitch - Mating | 0.250"" (6.35mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Circular |
| Contact Length - Post | 0.160"" (4.06mm) |
| Insulation Height | 0.360"" (9.14mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
