1586495-8
CONN HEADER VERT 8POS 4.2MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

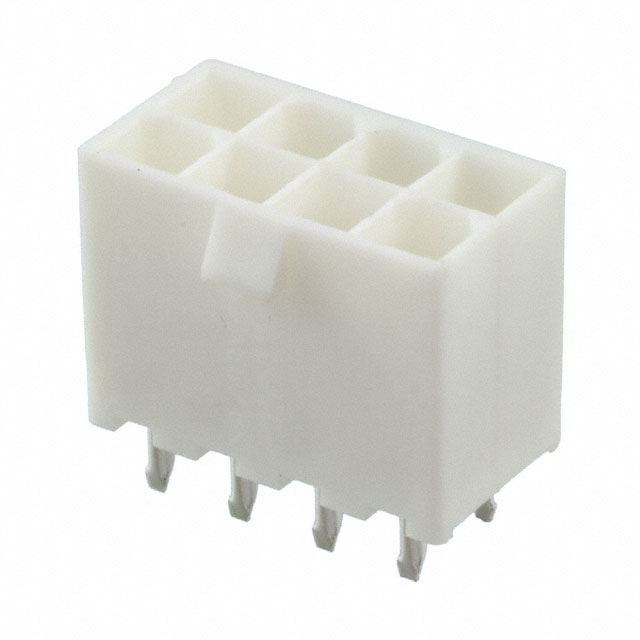

TE Connectivity AMP Connectors AMP-DUAC series connector header, part number 1586495-8. This vertical, shrouded header features 8 positions across 2 rows with a 4.20mm mating pitch. The header utilizes male pin contacts made from a copper alloy with a tin finish, offering a mating contact finish thickness of 118.1µin (3.00µm). The post length is 0.138" (3.50mm). Insulation is provided by white polyamide (PA), nylon material with a UL94 V-0 flammability rating and an insulation height of 0.504" (12.80mm). Mounting is via through-hole termination, suitable for solder connections. This component is designed for board-to-board or cable applications and includes a locking ramp for secure mating. The operating temperature range is -55°C to 105°C, with a voltage rating of 600VAC.
Additional Information
Series: AMP-DUACRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 600VAC |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | White |
| Pitch - Mating | 0.165"" (4.20mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.138"" (3.50mm) |
| Insulation Height | 0.504"" (12.80mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.165"" (4.20mm) |
| Contact Length - Mating | - |
