1534531-1
CONN HEADER R/A 38POSManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

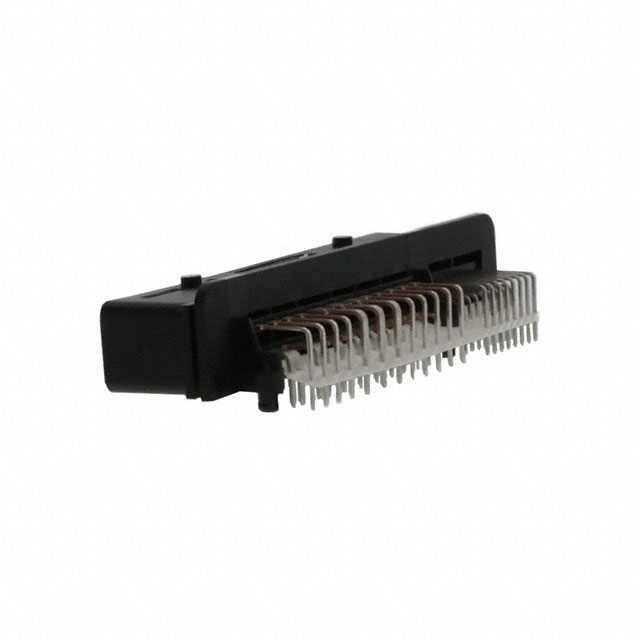

Connector Header Through Hole, Right Angle 38 position
Additional Information
Series: MCPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 12V |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 38 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 120°C |
| Contact Type | Tab |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | - |
| Insulation Color | Black |
| Pitch - Mating | - |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Rectangular |
| Contact Length - Post | 0.126"" (3.20mm) |
| Insulation Height | 0.642"" (16.30mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | - |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
