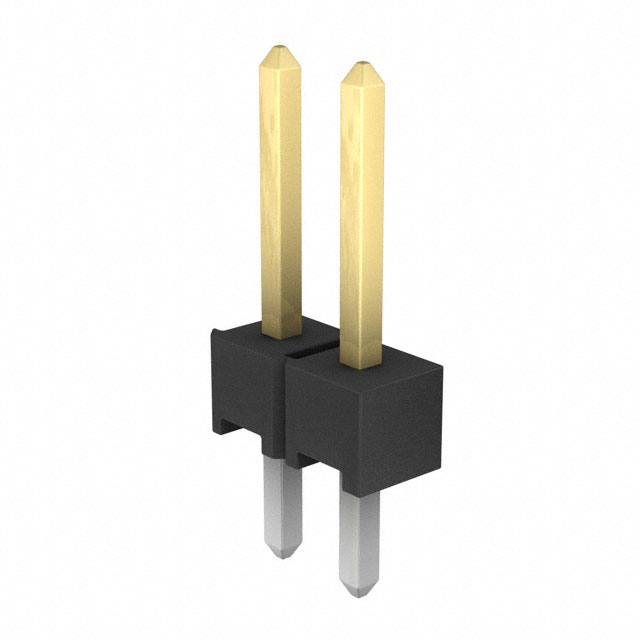

146281-2
CONN HEADER VERT 2POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors AMPMODU Mod II header, part number 146281-2, is a 2-position, unshrouded, vertical male pin header designed for through-hole mounting. This connector features a 0.100" (2.54mm) pitch for mating and board termination. The contact material is a copper alloy with gold plating on the mating surfaces, offering 30.0µin (0.76µm) thickness for enhanced durability and conductivity, and tin-lead plating on the post for reliable solderability. With a current rating of 3A, it is suitable for applications demanding robust interconnectivity. The insulation is Liquid Crystal Polymer (LCP) in black, rated UL94 V-0 for flammability resistance, and operates within a temperature range of -65°C to 105°C. This header is commonly utilized in industrial automation, consumer electronics, and telecommunications equipment.
Additional Information
Series: AMPMODU Mod IIRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header, Breakaway |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.120"" (3.05mm) |
| Insulation Height | 0.090"" (2.29mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.440"" (11.18mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.230"" (5.84mm) |
