1445055-2
CONN HEADER R/A 2POS 3MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors Micro MATE-N-LOK series header, part number 1445055-2, is a 2-position, right-angle, through-hole connector with a 3.00mm pitch. This shrouded header features brass male pins with tin-lead plating and a 3.50mm post length. The polyamide insulation, rated UL94 V-0, is black and provides a 0.152" insulation height. Designed for board-to-cable/wire applications, it utilizes a locking ramp for secure mating and includes a board lock feature for enhanced retention. Operating within a temperature range of -40°C to 105°C, this connector is suitable for demanding applications in the automotive, industrial, and consumer electronics sectors. Termination is via solder.
Additional Information
Series: Micro MATE-N-LOKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 250V |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.118"" (3.00mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.138"" (3.50mm) |
| Insulation Height | 0.152"" (3.85mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy

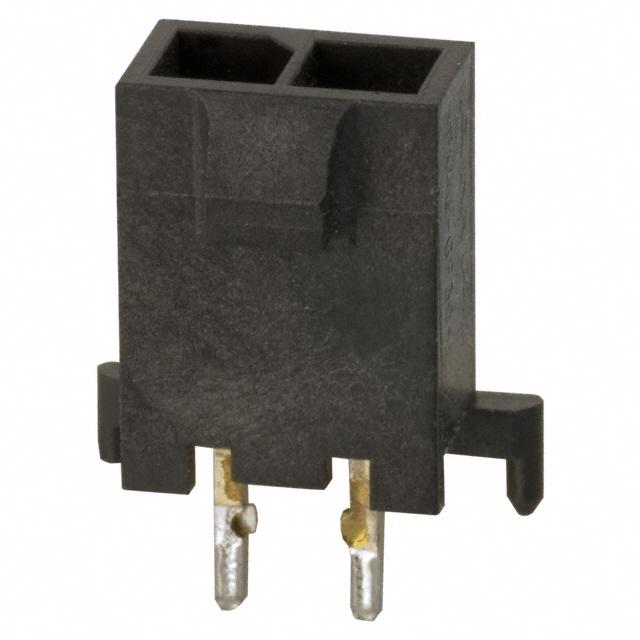

2-1445050-2
CONN HEADER VERT 2POS 3MM

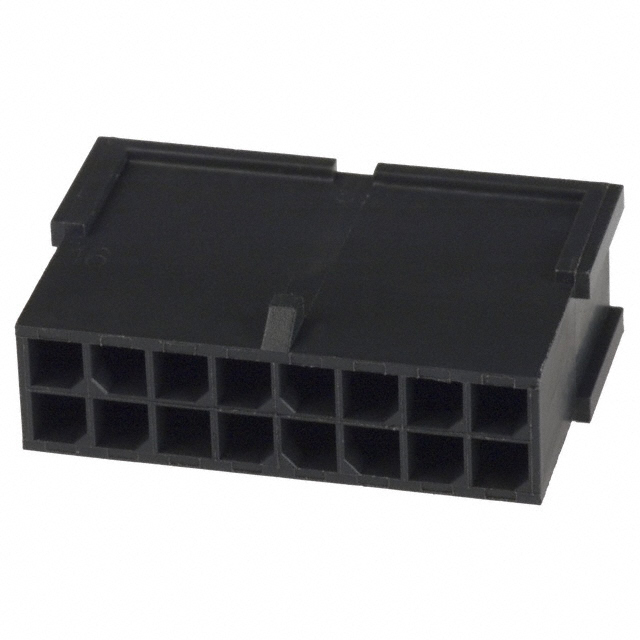

1-794616-6
CONN PLUG HSG 16POS 3.00MM

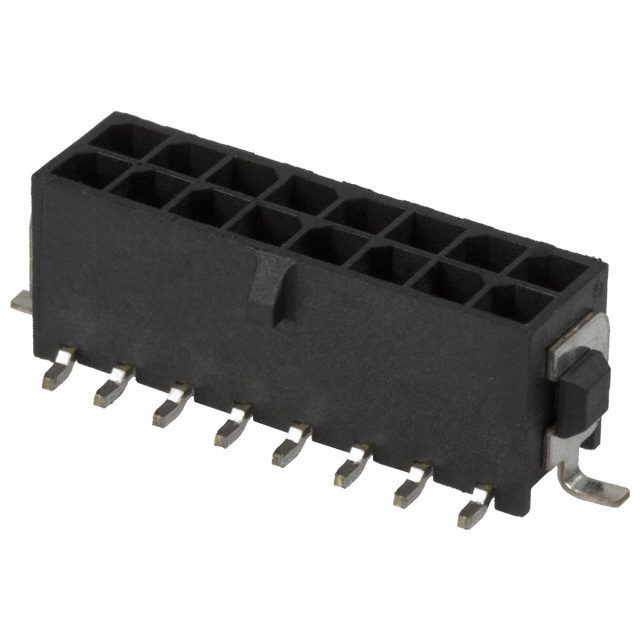

1-794637-6
