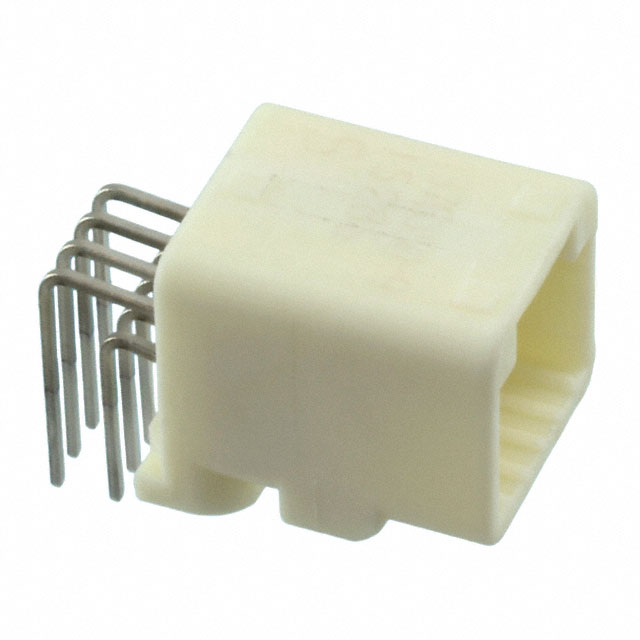

1376350-9
CONN HEADER R/A 8POS 2.2MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 8 position 0.087"" (2.20mm)
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | 12VDC |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -30°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Brass |
| Insulation Color | Natural |
| Pitch - Mating | 0.087"" (2.20mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.157"" (4.00mm) |
| Insulation Height | 0.610"" (15.49mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Row Spacing - Mating | 0.118"" (3.00mm) |
| Contact Length - Mating | 0.217"" (5.50mm) |
