1241209-1

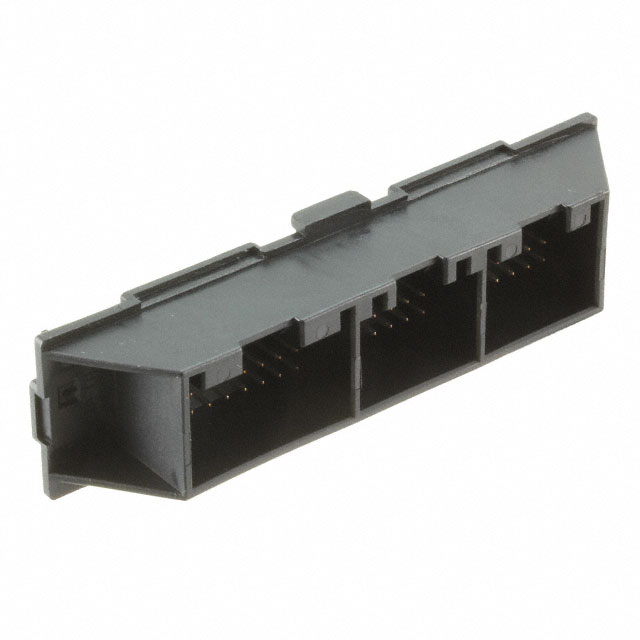

CONN HEADER R/A 40POS 2.5MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 40 (16 + 12 + 12) position 0.098"" (2.50mm)
Additional Information
Series: AMPMODU Mod IIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Board Lock |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 40 (16 + 12 + 12) |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.098"" (2.50mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.118"" (3.00mm) |
| Insulation Height | - |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.236"" (6.00mm) |
