104362-5
CONN HEADER VERT 6POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

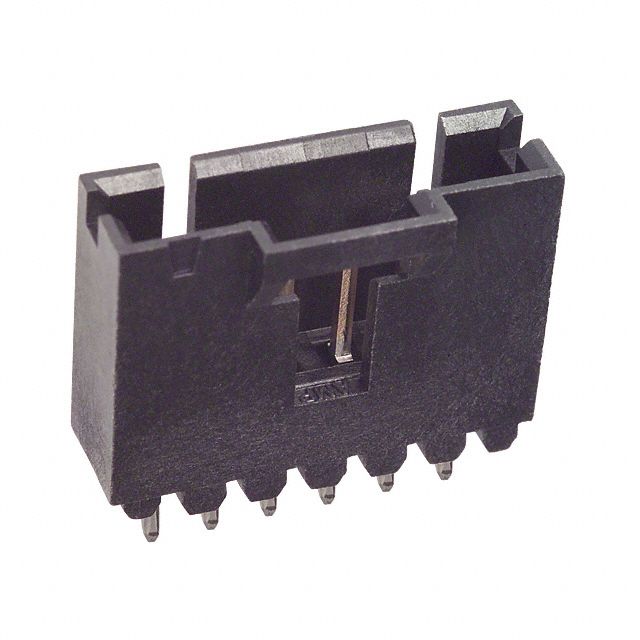

TE Connectivity AMP Connectors AMPMODU MTE series connector header, part number 104362-5, is a shrouded, vertical, 6-position through-hole male pin header with a 2.54mm pitch. This component features brass contacts with gold plating (15.0µin) for mating surfaces and tin-lead plating for post termination. The thermoplastic insulation, rated UL94 V-0, is black and designed for a 267V voltage rating and 3A current rating. Keying slots are incorporated for polarization. The operating temperature range is -65°C to 105°C. This header is suitable for board-to-board or cable applications and is supplied in a tube. It is utilized in industries such as industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: AMPMODU MTERoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Keying Slot |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | 267V |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Press-Fit, Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.130"" (3.30mm) |
| Insulation Height | 0.535"" (13.60mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | 0.550"" (13.97mm) |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.230"" (5.84mm) |
