103080-5
CONN HEADER VERT 7POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

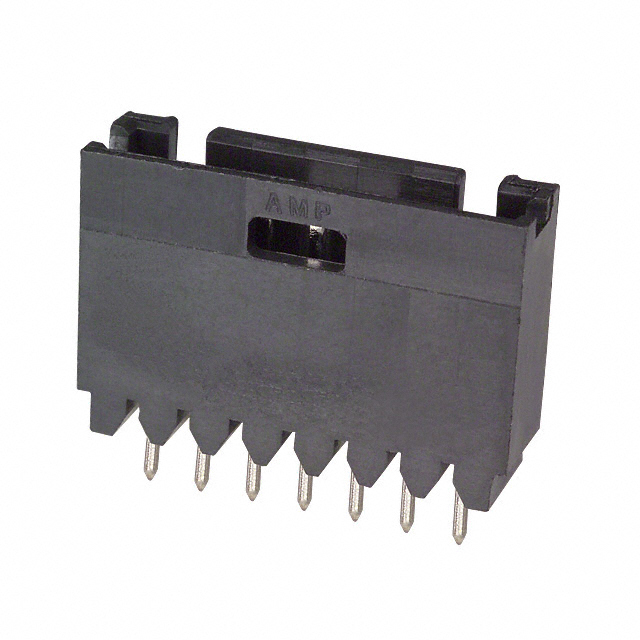

TE Connectivity AMP Connectors AMPMODU Mod II Header, part number 103080-5, is a 7-position, single-row shrouded male pin connector. This through-hole mounted header features a 2.54mm (0.100") pitch for mating and board termination. The contacts are brass with a tin-lead finish, offering a 3A current rating. Designed for reliable board-to-board or cable connections, it operates within a temperature range of -65°C to 105°C. The black thermoplastic insulation is rated UL94 V-0. This component is commonly utilized in industrial automation, consumer electronics, and automotive applications.
Additional Information
Series: AMPMODU Mod IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.130"" (3.30mm) |
| Insulation Height | 0.549"" (13.94mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | 0.589"" (14.96mm) |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.240"" (6.10mm) |
