102699-5

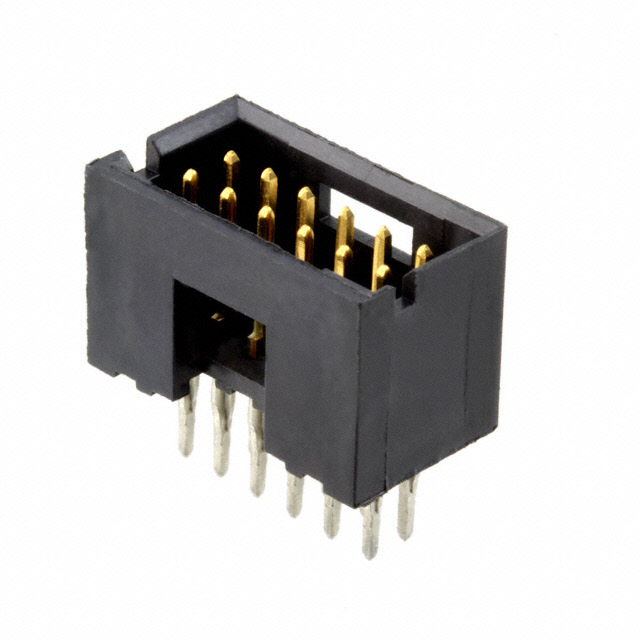

CONN HEADER VERT 12POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors AMPMODU Mod II Series connector header, part number 102699-5, features a vertical, through-hole mounting style with 12 positions arranged in two rows. This shrouded header utilizes a 0.100" (2.54mm) pitch for both mating and row spacing. The male pin contacts are constructed from copper alloy, offering a 30.0µin (0.76µm) gold finish for mating and tin-lead for the post. It supports a current rating of 3A and is rated for operation between -55°C and 105°C. The thermoplastic insulation, UL94 V-0 rated, provides a robust housing. This component is suitable for board-to-board or cable applications and is typically found in industrial automation, automotive, and telecommunications equipment.
Additional Information
Series: AMPMODU Mod IIRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Press-Fit, Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.250"" (6.35mm) |
| Insulation Height | 0.440"" (11.18mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | 0.660"" (16.76mm) |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.320"" (8.13mm) |
