102617-2

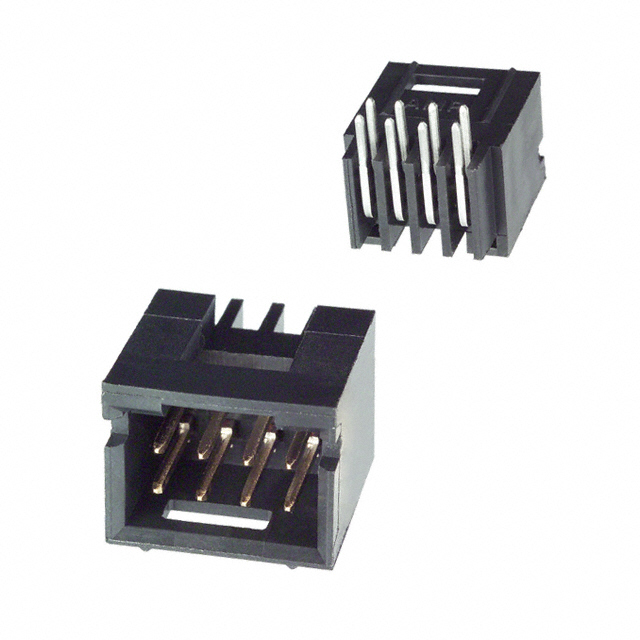

CONN HEADER R/A 8POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors AMPMODU Mod II 102617-2 is a right-angle, through-hole mounted header with 8 positions on a 2.54mm pitch. This shrouded connector features a 4-wall design for enhanced polarization and protection. The male pin contacts are made of phosphor bronze with a square shape, offering a mating contact finish of 15.0µin (0.38µm) gold and a post finish of tin-lead. The black thermoplastic insulation, rated UL94 V-0, provides a mating contact length of 0.318" (8.08mm) and a post length of 0.135" (3.43mm). With a current rating of 3A and an operating temperature range of -65°C to 105°C, this component is suitable for board-to-board or cable applications in industrial automation, consumer electronics, and automotive sectors.
Additional Information
Series: AMPMODU Mod IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.135"" (3.43mm) |
| Insulation Height | 0.400"" (10.16mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.318"" (8.08mm) |
