102523-8
CONN HEADER R/A 10POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

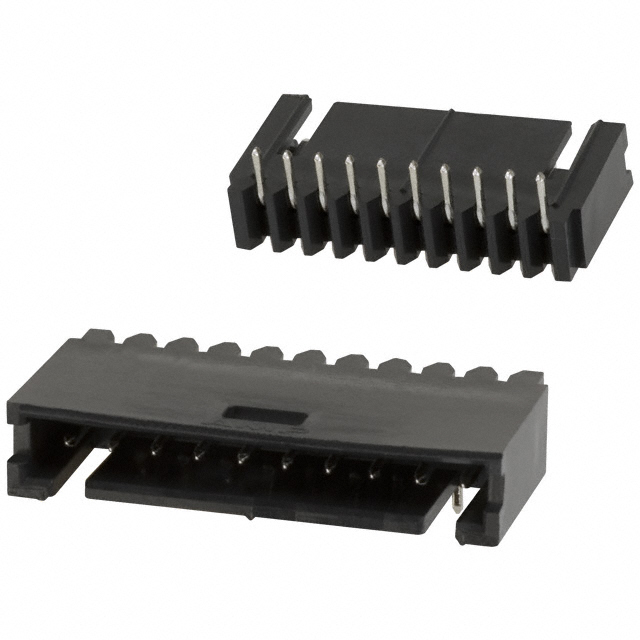

TE Connectivity AMP Connectors AMPMODU Mod II connector, part number 102523-8, is a right-angle header with 10 positions and a 2.54mm pitch. This through-hole mounted component features a shrouded, 4-wall design for robust interconnectivity. The male pin contacts are constructed from phosphor bronze with a tin-lead plating, offering a mating contact length of 0.240" (6.10mm) and post contact length of 0.110" (2.79mm). The thermoplastic insulation, rated UL94 V-0, is black and provides an insulation height of 0.214" (5.44mm). Operating within a temperature range of -65°C to 105°C, this header supports a 3A current rating. The AMPMODU Mod II series is commonly utilized in industrial automation, consumer electronics, and automotive applications requiring reliable board-to-board or cable connections. The component is supplied in tape and reel packaging.
Additional Information
Series: AMPMODU Mod IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.110"" (2.79mm) |
| Insulation Height | 0.214"" (5.44mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.240"" (6.10mm) |
