102202-9

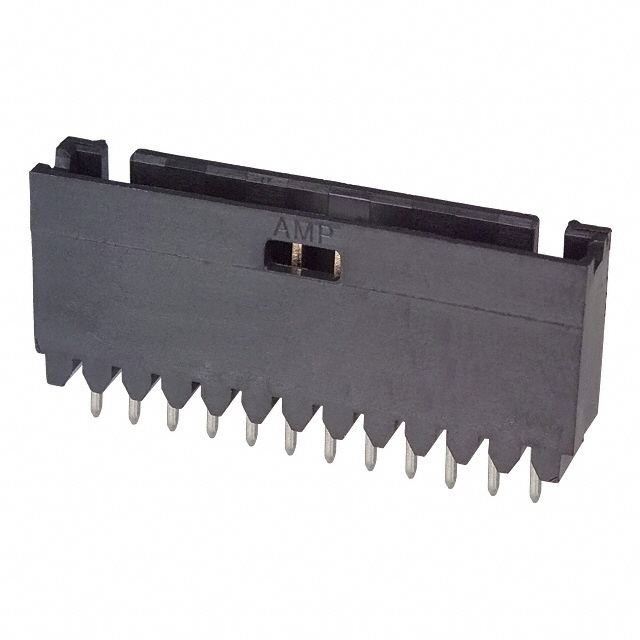

CONN HEADER VERT 12POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors AMPMODU Mod II 102202-9 is a 12-position, single-row header with a 2.54mm pitch. This through-hole mounted component features a vertical orientation and a shrouded design with four walls for enhanced protection. The male pin contacts are constructed from brass and offer a square contact shape. The mating contacts are finished with 15.0µin (0.38µm) of gold, while the post contacts utilize a tin-lead finish. This connector supports a current rating of 3A and is suitable for board-to-board or cable applications. The black thermoplastic insulation has a UL94 V-0 flammability rating and an insulation height of 0.549" (13.94mm). Operating temperature range is -65°C to 105°C. This component is commonly utilized in industrial automation, telecommunications, and consumer electronics.
Additional Information
Series: AMPMODU Mod IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.130"" (3.30mm) |
| Insulation Height | 0.549"" (13.94mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | 0.589"" (14.96mm) |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.240"" (6.10mm) |
