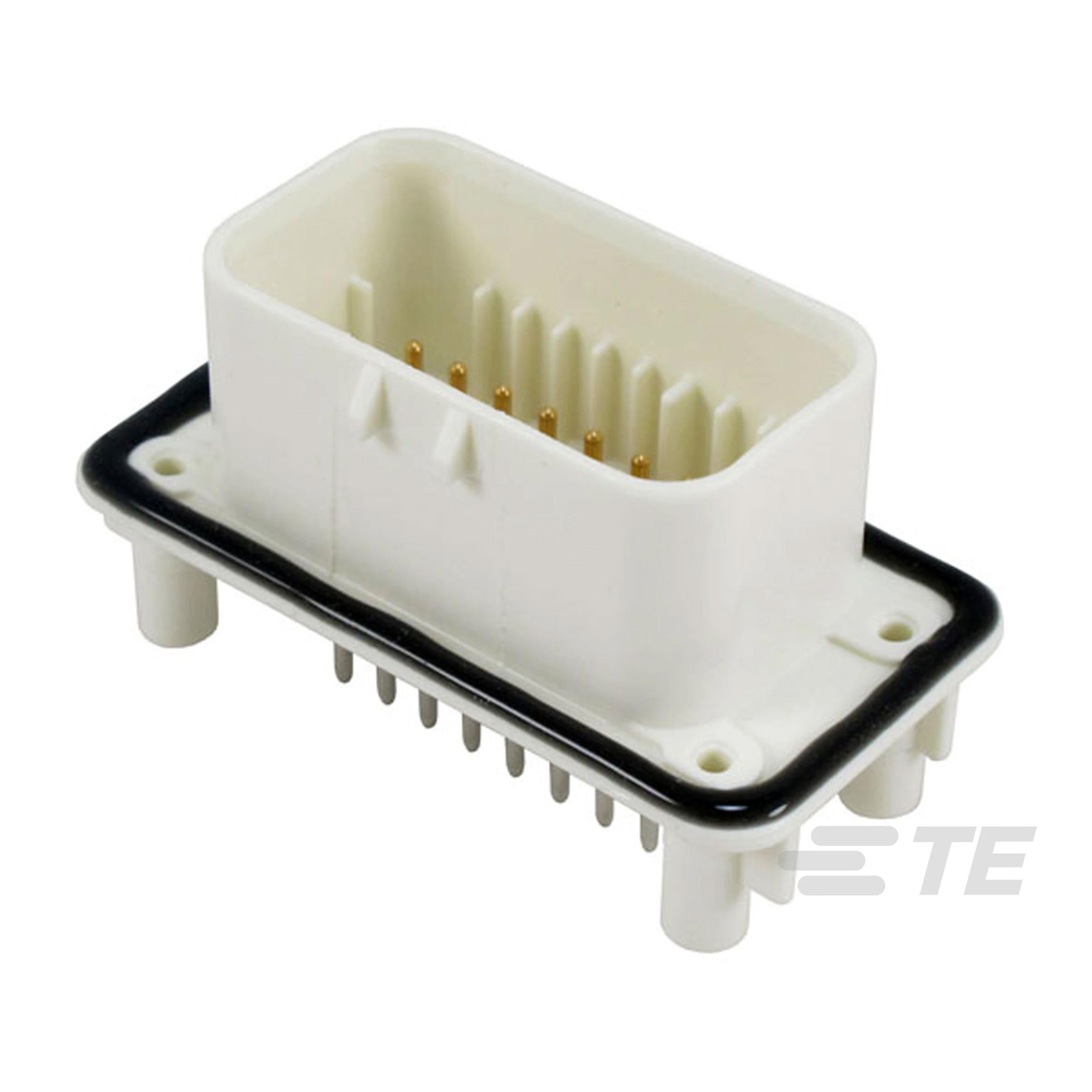

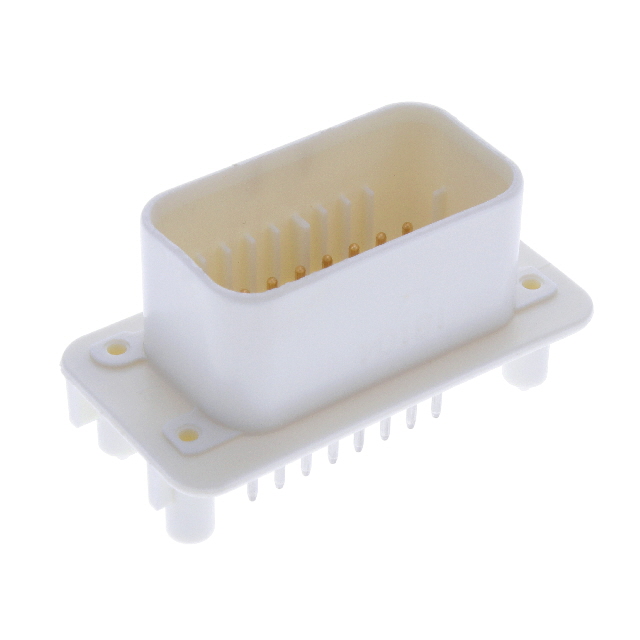

1-776228-2
CONN HEADER VERT 23POS 4MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Panel Mount, Through Hole 23 position 0.157"" (4.00mm)
Additional Information
Series: AMPSEALRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange, Sealed |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 23 |
| Number of Rows | 3 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Brass |
| Insulation Color | Natural |
| Pitch - Mating | 0.157"" (4.00mm) |
| Contact Finish - Mating | Gold-Palladium |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Shape | Circular |
| Contact Length - Post | - |
| Insulation Height | - |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Row Spacing - Mating | 0.157"" (4.00mm) |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy

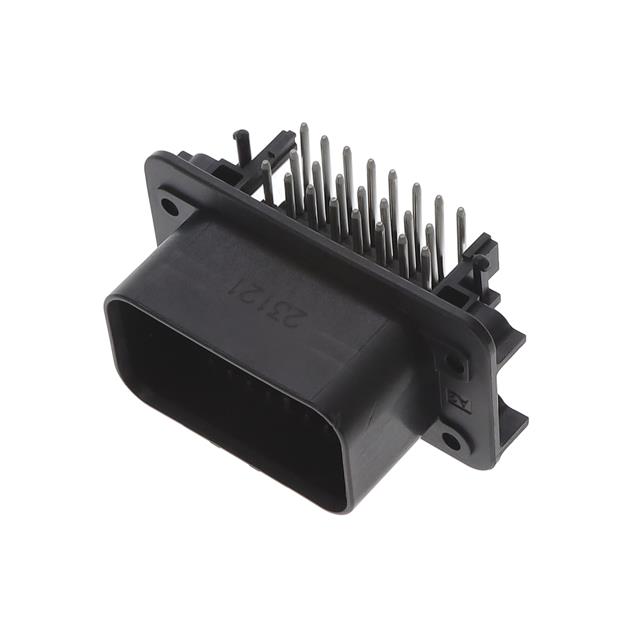

1-770669-1
CONN HEADER R/A 23POS 4MM

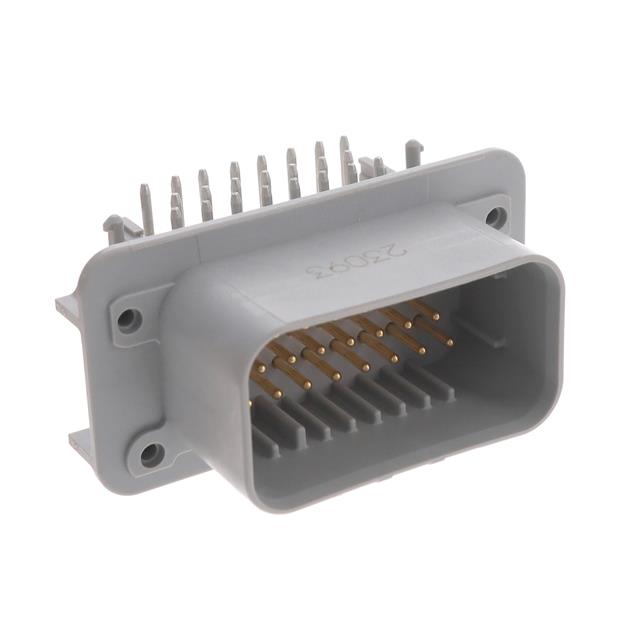

1-770669-4
