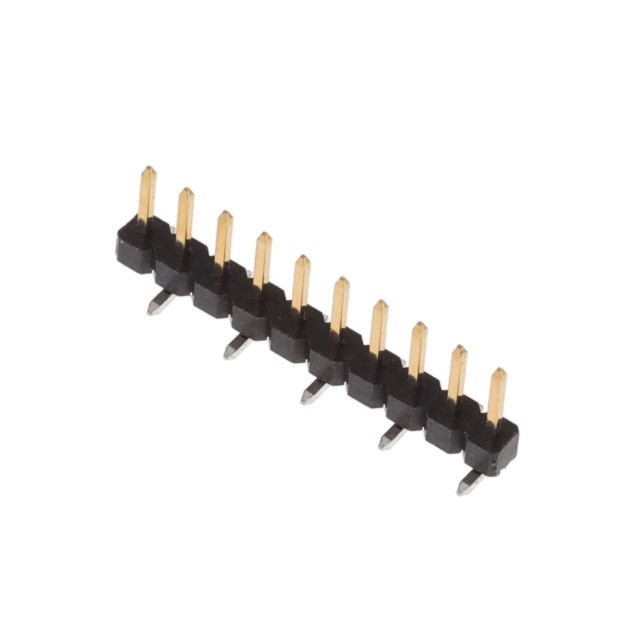

1-2842104-0
10P,2MM,BRK HDR,SRVT,SMD,0.76AU,Manufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 10 position 0.079"" (2.00mm)
Additional Information
Series: AMPMODURoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Pick and Place |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header, Breakaway |
| Voltage Rating | 125VAC/DC |
| Current Rating (Amps) | 2A |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.059"" (1.50mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.157"" (4.00mm) |
