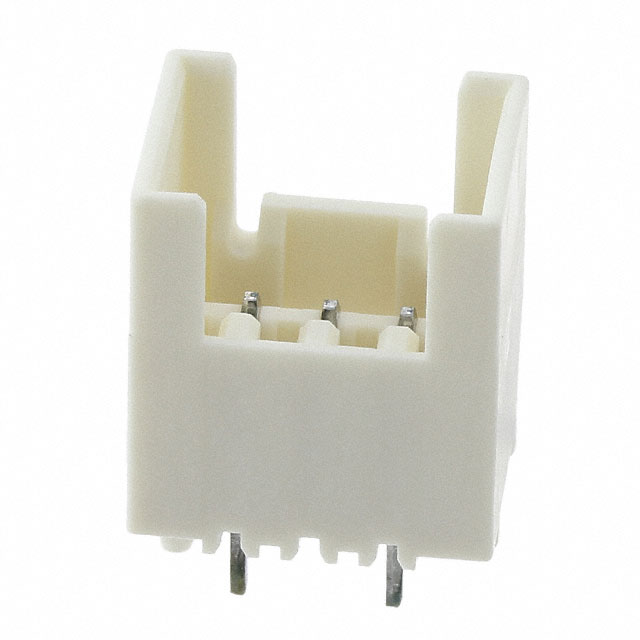

1-1971839-3
CONN HEADER VERT 3POS 2.5MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors offers the 1-1971839-3, a shrouded header designed for robust connections. This component features a 3-position, 1-row configuration with a 2.50mm pitch. The header's contacts are crafted from copper alloy with a silver mating and post finish, ensuring reliable conductivity. Termination is via solder, and the through-hole mounting type provides secure board attachment. Key features include a locking ramp for positive engagement, board guides for accurate placement, and glow wire compliance. Manufactured from Polyamide (PA) with a UL94 V-0 flammability rating, this header operates effectively within a temperature range of -40°C to 120°C. Its natural insulation color and 13.11mm insulation height contribute to its application in automotive, industrial automation, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Glow Wire Compliant |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 120°C |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Pitch - Mating | 0.098"" (2.50mm) |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Silver |
| Contact Shape | Rectangular |
| Contact Length - Post | 0.114"" (2.90mm) |
| Insulation Height | 0.516"" (13.11mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
