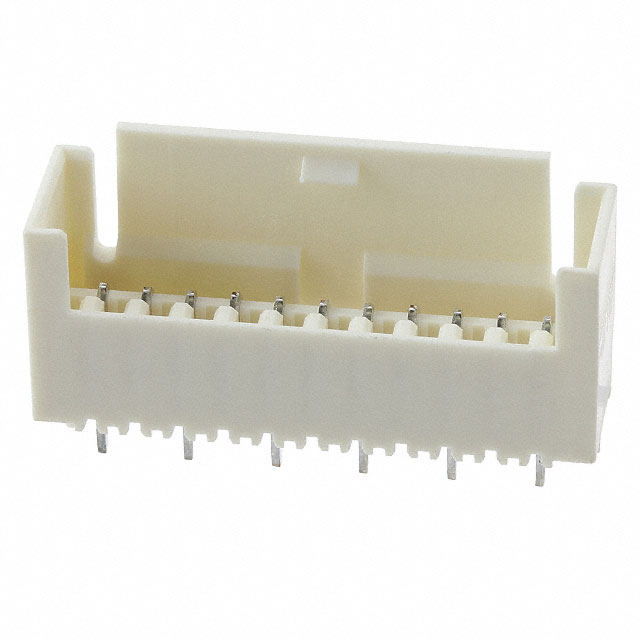

1-1971838-1

CONN HEADER VERT 11POS 2.5MM

Manufacturer: TE Connectivity AMP Connectors

Categories: Headers, Male Pins

Quality Control: Learn More

TE Connectivity AMP Connectors 1-1971838-1 is an 11-position shrouded header with a 2.50mm pitch. This through-hole mounted connector features a vertical orientation and a board-to-cable/wire style. The header utilizes copper alloy contacts with a silver mating and post finish. Key features include a locking ramp for secure mating, board guides for enhanced assembly, and glow wire compliance. The natural colored polyamide insulation has a height of 15.49mm and a UL94 V-0 flammability rating. The post contact length is 2.90mm. This component is suitable for applications in the industrial and automotive sectors, operating within a temperature range of -40°C to 120°C. It is supplied in tubes.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:
Technical Details:
FeaturesBoard Guide, Glow Wire Compliant
PackagingTube
Connector TypeHeader
Voltage Rating-
Current Rating (Amps)-
Mounting TypeThrough Hole
Number of Positions11
Number of Rows1
StyleBoard to Cable/Wire
Operating Temperature-40°C ~ 120°C
Contact TypeTab
Fastening TypeLocking Ramp
Number of Positions LoadedAll
TerminationSolder
Ingress Protection-
Material Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Insulation ColorNatural
Pitch - Mating0.098"" (2.50mm)
Contact Finish - MatingSilver
Contact Finish Thickness - Mating-
Contact Finish - PostSilver
Contact ShapeRectangular
Contact Length - Post0.114"" (2.90mm)
Insulation Height0.610"" (15.49mm)
ShroudingShrouded - 4 Wall
Overall Contact Length-
Insulation MaterialPolyamide (PA), Nylon
Row Spacing - Mating-
Contact Length - Mating-
